1459MBK1

Obsolete

Hammond Manufacturing

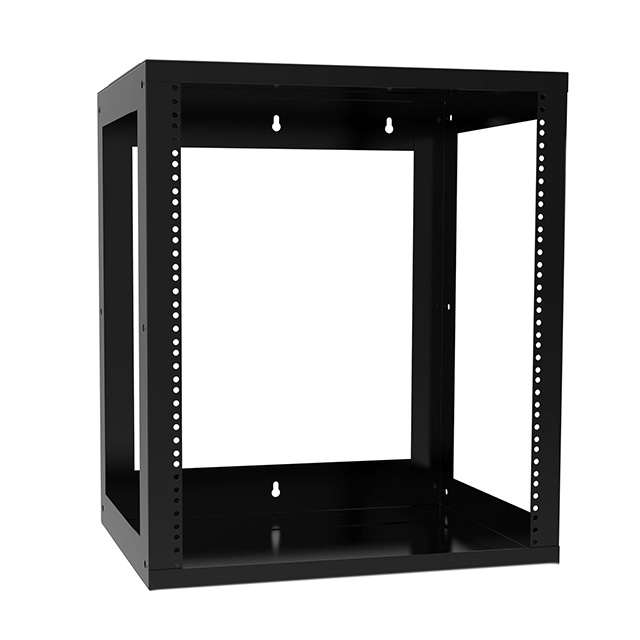

RACK STEEL 16.1X21.1X49.2 BLK

Search across all available documentation for this part.

Obsolete

Hammond Manufacturing

RACK STEEL 16.1X21.1X49.2 BLK

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1459MBK1	1459 Series

Color	Black	Black
Dimensions - Overall [x]	409.96 mm	409.96 mm
Dimensions - Overall [x]	16.14 in	16.14 in
Dimensions - Overall [y]	536.45 mm	536.45 mm
Dimensions - Overall [y]	21.12 in	21.12 in
Dimensions - Overall [z]	49.2 in	49.2 in
Dimensions - Overall [z]	1249.67 mm	1249.67 mm
Dimensions - Panel [x]	308.36 mm	308.36 mm
Dimensions - Panel [x]	12.14 "	12.14 "
Dimensions - Panel [y]	467.87 mm	467.87 mm
Dimensions - Panel [y]	18.42 "	18.42 "
Dimensions - Panel [z]	1200.15 mm	1200.15 mm
Dimensions - Panel [z]	47.25 in	47.25 in
Door	Doorless	Doorless
Features	Removable Top and Bottom	Removable Top and Bottom
For Use With/Related Products	-	1459J
Material	Metal, Steel	Metal, Steel
Mounting Rails	One Pair	One Pair
Number of Units	27U	27U
Size / Dimension	-	0.051 in
Size / Dimension	-	35.2 "
Size / Dimension	-	894.08 mm
Size / Dimension	-	1.3 mm
Size / Dimension	-	409.96 mm
Size / Dimension	-	16.14 "
Style	Top, Enclosed, Bottom	Top, Enclosed, Bottom
Type	Cabinet Rack	Cabinet Rack, Panel, Side
Ventilation	Non-Vented	Non-Vented
Weight	15.9 kg	9.1 - 15.9 kg
Weight	35 lbs	20 - 35 lbs

RACK STEEL 16.1X21.1X49.2 BLK

Part	Number of Units	Weight	Weight	Dimensions - Panel [x]	Dimensions - Panel [z]	Dimensions - Panel [x]	Dimensions - Panel [y]	Dimensions - Panel [y]	Dimensions - Panel [z]	Mounting Rails	Ventilation	Type	Features	Style	Door	Material	Dimensions - Overall [y]	Dimensions - Overall [z]	Dimensions - Overall [y]	Dimensions - Overall [x]	Dimensions - Overall [z]	Dimensions - Overall [x]	Color	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	For Use With/Related Products
Hammond Manufacturing 1459MBK1	27U	15.9 kg	35 lbs	308.36 mm	1200.15 mm	12.14 "	467.87 mm	18.42 "	47.25 in	One Pair	Non-Vented	Cabinet Rack	Removable Top and Bottom	Bottom, Enclosed, Top	Doorless	Metal, Steel	536.45 mm	49.2 in	21.12 in	409.96 mm	1249.67 mm	16.14 in	Black
Hammond Manufacturing 1459JQBK1		9.1 kg	20 lbs								Non-Vented	Panel, Side				Metal, Steel							Black	0.051 in	35.2 "	894.08 mm	1.3 mm	409.96 mm	16.14 "	1459J

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Metal, Steel Cabinet Rack Enclosed, Bottom, Top 16.140" L x 21.120" W x 49.200" H (409.96mm x 536.45mm x 1249.67mm) Black
