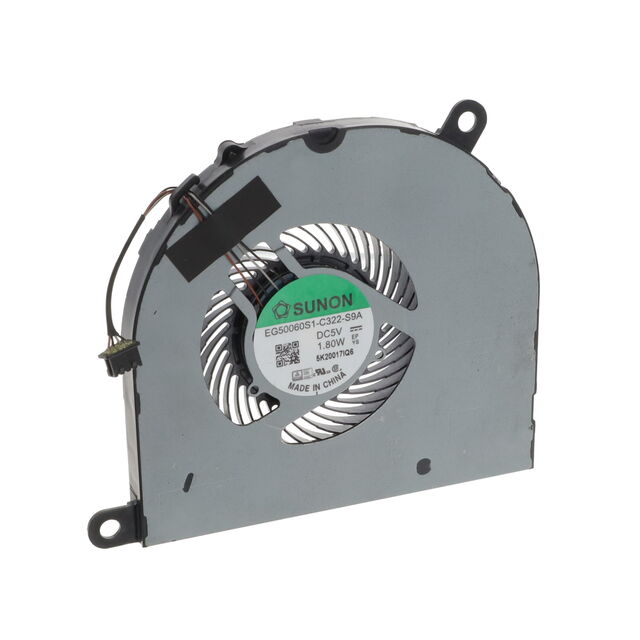

4549HQ/EG50060S1-C331-S9A

Active

Sunon Fans

FAN BLOWER 96.63X9.15MM 5VDC

Search across all available documentation for this part.

Active

Sunon Fans

FAN BLOWER 96.63X9.15MM 5VDC

Technical Specifications

Parameters and characteristics for this part

Specification	4549HQ/EG50060S1-C331-S9A

Air Flow	0.157 m³/min
Air Flow	5.7 CFM
Approval Agency	cUR, CE, UL, CSA, TUV
Bearing Type	Sleeve
Current Rating (Amps)	0.38 A
Fan Type	Blower
Features	Auto Restart, Speed Sensor (Tach), PWM Control
Lifetime @ Temp.	35000 Hrs
Material - Blade	Liquid Crystal Polymer (LCP)
Material - Frame	Steel, Polybutylene Terephthalate (PBT)
Noise	44.4 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	1.9 W
RPM	4800 RPM
Size / Dimension	Rectangular/Rounded
Size / Dimension [x]	96.63 mm
Size / Dimension [y]	75.66 mm
Static Pressure	156.9 Pa
Static Pressure	0.63 in H2O
Termination	4 Position Rectangular Connector
Voltage - Rated	5 V
Voltage Range [Max]	5 VDC
Voltage Range [Min]	2.2 VDC
Weight	0.098 lb
Weight	44.45 g
Width [y]	9.15 mm

FAN BLOWER 96.63X9.15MM 5VDC

Part	Approval Agency	Voltage Range [Min]	Voltage Range [Max]	Noise	Bearing Type	Material - Blade	Material - Frame	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Size / Dimension [y]	Size / Dimension	Size / Dimension [x]	Lifetime @ Temp.	Voltage - Rated	Features	Termination	Static Pressure	Static Pressure	Weight	Weight	RPM	Current Rating (Amps)	Width [y]	Fan Type	Air Flow	Air Flow
Sunon Fans 4549HQ/EG50060S1-C331-S9A	CE, CSA, cUR, TUV, UL	2.2 VDC	5 VDC	44.4 dB(A)	Sleeve	Liquid Crystal Polymer (LCP)	Polybutylene Terephthalate (PBT), Steel	1.9 W	70 °C	70 °C	-10 °C	-10 °C	75.66 mm	Rectangular/Rounded	96.63 mm	35000 Hrs	5 V	Auto Restart, PWM Control, Speed Sensor (Tach)	4 Position Rectangular Connector	156.9 Pa	0.63 in H2O	0.098 lb	44.45 g	4800 RPM	0.38 A	9.15 mm	Blower	0.157 m³/min	5.7 CFM

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 10.11

General part information

Fan Blower 5VDC Rectangular/Rounded - 96.63mm L x 75.66mm H Sleeve 5.7 CFM (0.157m³/min) 4 Position Rectangular Connector
