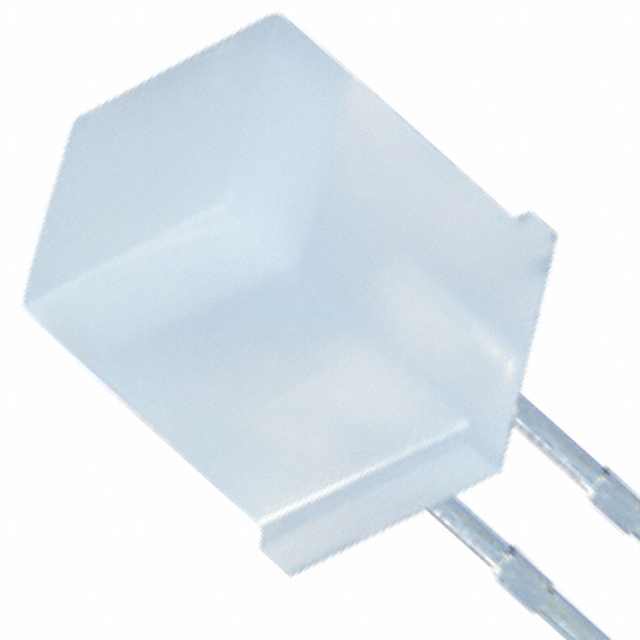

XSCBD23MB
ActiveSunLED
LED BLUE DIFF ICE CUBE LED T/H
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
XSCBD23MB
ActiveSunLED
LED BLUE DIFF ICE CUBE LED T/H
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | XSCBD23MB |
|---|---|
| Color | Blue |
| Configuration | Standard |
| Current - Test | 20 mA |
| Height (Max) [Max] [z] | 7.2 mm |
| Lens Color | White |
| Lens Size | 5 mm |
| Lens Style | Square with Flat Top |
| Lens Transparency | Diffused |
| Millicandela Rating | 29 mcd |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension [x] | 5 mm |
| Size / Dimension [y] | 5 mm |
| Supplier Device Package | ICE CUBE LED |
| Viewing Angle | 110 ° |
| Voltage - Forward (Vf) (Typ) | 3.3 V |
| Wavelength - Dominant | 465 nm |
| Wavelength - Peak | 460 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.47 | |
| 10 | $ 0.29 | |||
| 500 | $ 0.17 | |||
| 1000 | $ 0.13 | |||
| 5000 | $ 0.11 | |||
| 10000 | $ 0.10 | |||
Description
General part information
XSCBD23 Series
Blue 465nm LED Indication - Discrete 3.3V Radial
