MDSM-25SC-Z11-VS1

Active

ITT Cannon, LLC

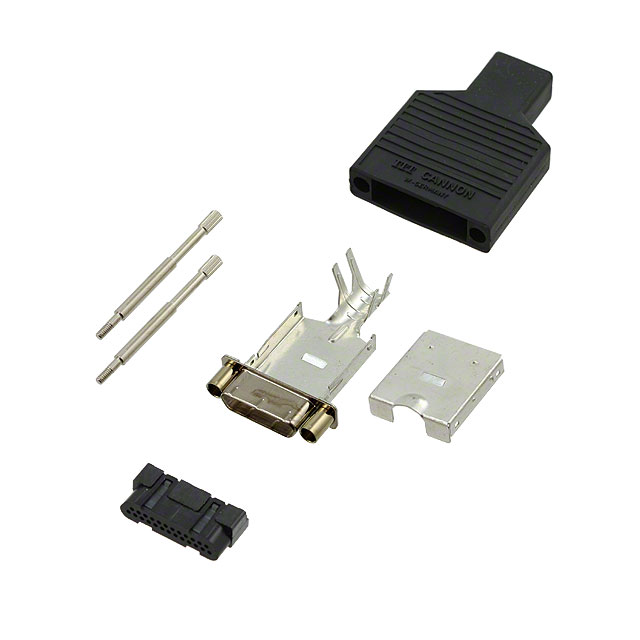

CONN MICRO-D HSG RCP 25P 5PC KIT

Search across all available documentation for this part.

Active

ITT Cannon, LLC

CONN MICRO-D HSG RCP 25P 5PC KIT

Technical Specifications

Parameters and characteristics for this part

Specification	MDSM-25SC-Z11-VS1

Color	Black
Connector Style	Micro-D, D-Type
Connector Type	Receptacle for Female Contacts
Contact Type	Signal
Dielectric Material	Thermoplastic
Features	Shielded
Flange Feature	2-56
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Steel, Tin-Nickel Plated
Shell Size, Connector Layout [x]	0.05
Shell Size, Connector Layout [y]	0.1

Part	Features	Shell Material, Finish	Number of Rows	Connector Type	Number of Positions	Shell Size, Connector Layout [x]	Shell Size, Connector Layout [y]	Contact Type	Connector Style	Note	Color	Operating Temperature [Min]	Operating Temperature [Max]	Dielectric Material	Mating Cycles	Mounting Type	Flange Feature
ITT Cannon, LLC MDSM-9PC-Z7-0-VS1	Shielded	Steel Tin-Nickel Plated	2	Plug for Male Contacts	9	0.05	0.1	Signal	D-Type Micro-D	Contacts Not Included	Black	-55 °C	125 °C	Thermoplastic	500	Free Hanging (In-Line)
ITT Cannon, LLC MDSM-9SC-Z24-VS1	Shielded	Steel Tin-Nickel Plated	2	Receptacle for Female Contacts	9	0.05	0.1	Signal	D-Type Micro-D	Contacts Not Included	Black	-55 °C	125 °C	Thermoplastic	500	Free Hanging (In-Line)	2-56
ITT Cannon, LLC MDSM-9PC-Z42-0-VS1	Shielded	Steel Tin-Nickel Plated	2	Plug for Male Contacts	9	0.05	0.1	Signal	D-Type Micro-D	Contacts Not Included	Black	-55 °C	125 °C	Thermoplastic	500	Free Hanging (In-Line)	Female Screwlock (2-56) Mating Side
ITT Cannon, LLC MDSM-25SC-Z11-VS1	Shielded	Steel Tin-Nickel Plated	2	Receptacle for Female Contacts		0.05	0.1	Signal	D-Type Micro-D	Contacts Not Included	Black	-55 °C	125 °C	Thermoplastic	500	Free Hanging (In-Line)	2-56

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Receptacle for Female Contacts Housing D-Type, Micro-D Connector 25 Position
