FA1-NHRP-PCBT10

Active

AMPHENOL RF

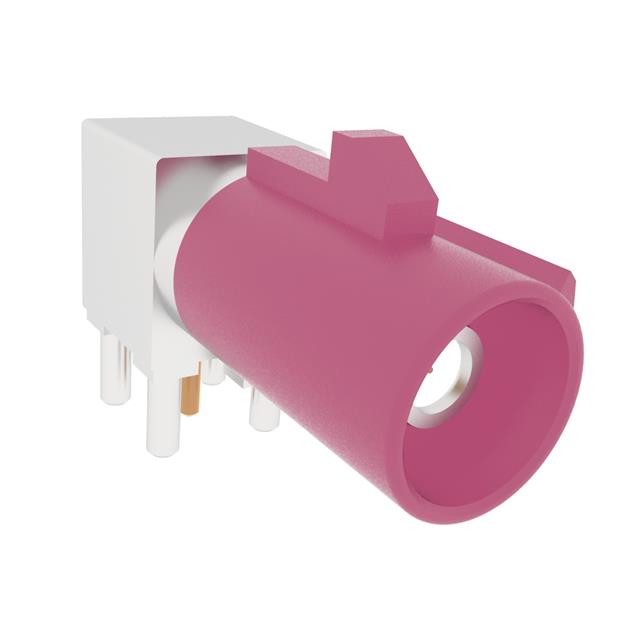

FAKRA GEN 1 PCB THROUGH HOLE RIGHT ANGLE PLUG 50 OHM H KEY CODE

Search across all available documentation for this part.

Active

AMPHENOL RF

FAKRA GEN 1 PCB THROUGH HOLE RIGHT ANGLE PLUG 50 OHM H KEY CODE

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMB, Fakra Connector Plug, Male Pin 50 Ohms Through Hole, Right Angle Solder

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	FA1-NHRP-PCBT10	FA1-NHRP Series

Body Finish	Tin	Tin
Body Material	Zinc Die Cast	Zinc Die Cast
Center Contact Material	Brass	Brass
Center Contact Plating	Gold	Gold
Connector Style	SMB, Fakra	SMB, Fakra
Connector Type	Male Pin, Plug	Male Pin, Plug
Contact Termination	Solder	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Fastening Type	Locking Ramp	Locking Ramp
Features	Code H	Code H
Frequency - Max [Max]	6000 MHz	6000 MHz
Housing Color	Violet, Heather	Violet, Heather
Impedance	50 Ohms	50 Ohms
Includes	-	1 Connector, 1 Housing
Insertion Loss	-	0.3 dB
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle
Number of Ports	1	1
Operating Temperature [Max]	100 °C	100 - 125 °C
Operating Temperature [Min]	-40 °C	-65 - -40 ░C
Shield Termination	Solder	Solder

CONN FAKRA PLUG R/A 50 OHM PCB

Part	Shield Termination	Housing Color	Center Contact Material	Insertion Loss	Frequency - Max [Max]	Impedance	Body Material	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Includes	Body Finish	Connector Style	Center Contact Plating	Contact Termination	Connector Type	Fastening Type	Number of Ports	Features	Dielectric Material
AMPHENOL RF FA1-NHRP-PCB-8	Solder	Heather, Violet	Brass	0.3 dB	6000 MHz	50 Ohms	Zinc Die Cast	125 °C	-65 ░C	Through Hole, Right Angle	1 Connector, 1 Housing	Tin	Fakra, SMB	Gold	Solder	Male Pin, Plug	Locking Ramp	1	Code H	Polytetrafluoroethylene (PTFE)
AMPHENOL RF FA1-NHRP-PCBT10	Solder	Heather, Violet	Brass		6000 MHz	50 Ohms	Zinc Die Cast	100 °C	-40 °C	Through Hole, Right Angle		Tin	Fakra, SMB	Gold	Solder	Male Pin, Plug	Locking Ramp	1	Code H	Polytetrafluoroethylene (PTFE)
