472-4"X36YD

Active

3M (TC)

TAPE VINYL BLK 4"X36YDS

Search across all available documentation for this part.

Active

3M (TC)

TAPE VINYL BLK 4"X36YDS

Technical Specifications

Parameters and characteristics for this part

Specification	472-4"X36YD

Adhesive	Rubber
Backing, Carrier	Vinyl
Color	Black
Length	36 yd
Length	32.9 m
Length	108 ft
Shelf Life	18 Months
Shelf Life Start	Date of Manufacture
Storage/Refrigeration Temperature [Max]	80 °F, 27 °C
Storage/Refrigeration Temperature [Min]	60 °F, 16 °C
Tape Type	Conformable Vinyl
Temperature Range	107 °C
Temperature Range	225 °F
Thickness	0.0104 in
Thickness	0.264 mm
Thickness	10.4 mils
Thickness - Adhesive	9 mils
Thickness - Adhesive	0.229 mm
Thickness - Adhesive	0.009 in
Thickness - Backing, Carrier	0.0014 in
Thickness - Backing, Carrier	1.4 mils
Thickness - Backing, Carrier	0.036 mm
Usage	Splicing, Patching, Heavy Duty, Sealing
Width [x]	4 "
Width [x]	101.6 mm

Part	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Backing, Carrier	Tape Type	Adhesive	Temperature Range	Temperature Range	Shelf Life Start	Shelf Life	Width [x]	Width [x]	Thickness - Adhesive	Thickness - Adhesive	Thickness - Adhesive	Color	Thickness	Thickness	Thickness	Usage	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Length	Length	Length	Width [y]	Width [y]
3M (TC) 472-1"X36YD	0.0014 in	1.4 mils	0.036 mm	Vinyl	Conformable Vinyl	Rubber	107 °C	225 °F	Date of Manufacture	18 Months	25.4 mm	1 in	9 mils	0.229 mm	0.009 in	Black	0.0104 in	0.264 mm	10.4 mils	Heavy Duty Patching Sealing Splicing	16 °C 60 °F	27 °C 80 °F	36 yd	32.9 m	108 ft
3M (TC) 472-2"X36YD	0.0014 in	1.4 mils	0.036 mm	Vinyl	Conformable Vinyl	Rubber	107 °C	225 °F	Date of Manufacture	18 Months			9 mils	0.229 mm	0.009 in	Black	0.0104 in	0.264 mm	10.4 mils	Heavy Duty Patching Sealing Splicing	16 °C 60 °F	27 °C 80 °F	36 yd	32.9 m	108 ft	2 "	50.8 mm
3M (TC) 472-4"X36YD	0.0014 in	1.4 mils	0.036 mm	Vinyl	Conformable Vinyl	Rubber	107 °C	225 °F	Date of Manufacture	18 Months	101.6 mm	4 "	9 mils	0.229 mm	0.009 in	Black	0.0104 in	0.264 mm	10.4 mils	Heavy Duty Patching Sealing Splicing	16 °C 60 °F	27 °C 80 °F	36 yd	32.9 m	108 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	8	$ 135.84

General part information

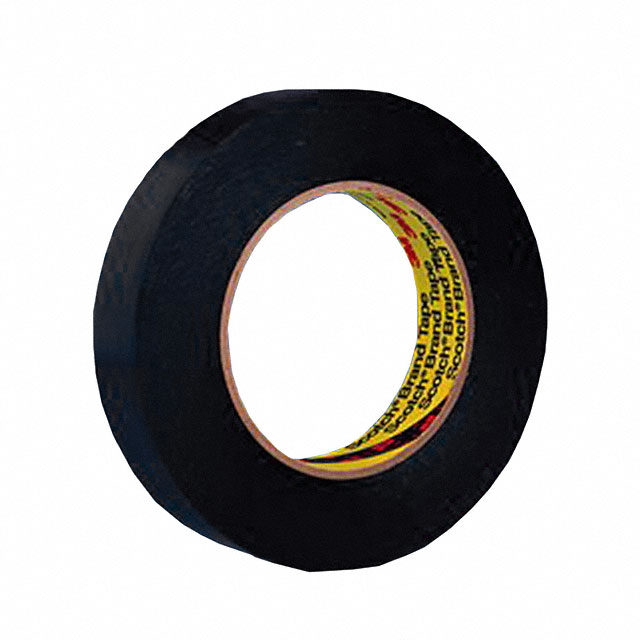

Conformable Vinyl Tape Rubber Adhesive Black 4.00" (101.60mm) X 108' (32.9m) 36 yds
