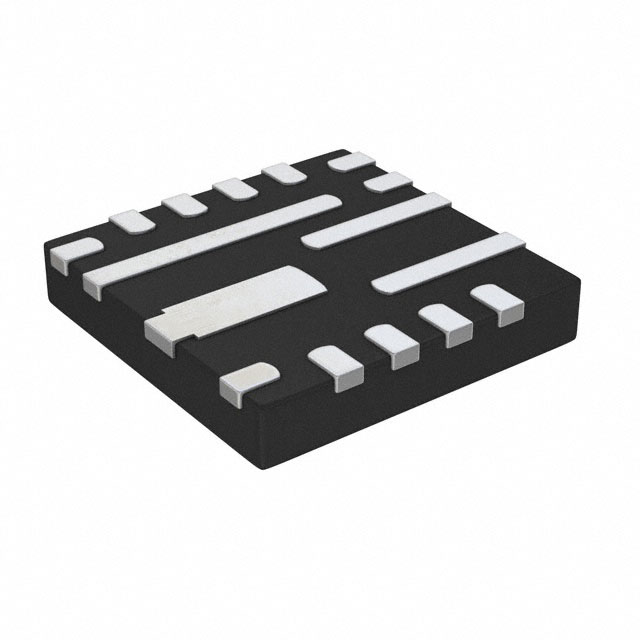

RT2810BHGQUF

Active

Richtek USA Inc.

IC REG BUCK ADJ 10A 16UQFN

Search across all available documentation for this part.

Active

Richtek USA Inc.

IC REG BUCK ADJ 10A 16UQFN

Technical Specifications

Parameters and characteristics for this part

Part	Supplied Contents	Current - Output	Regulator Topology	Frequency - Switching	Voltage - Output	Outputs and Type	Outputs and Type	Board Type	Voltage - Input [Max]	Voltage - Input [Min]	Main Purpose	Voltage - Output (Max) [Max]	Voltage - Input (Min) [Min]	Frequency - Switching [Max]	Frequency - Switching [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Number of Outputs	Voltage - Output (Min/Fixed)	Output Type	Voltage - Input (Max) [Max]	Package / Case	Topology	Synchronous Rectifier	Function	Mounting Type	Supplier Device Package	Output Configuration
Richtek USA Inc. EVB_RT2810BHGQUF	Board(s)	10 A	Buck	500 kHz	1.4 V	Non-Isolated	1	Fully Populated	18 V	4.5 V	DC/DC Step Down
Richtek USA Inc. RT2810BHGQUF		10 A										8 V	4.5 V	700 kHz	300 kHz	-40 °C	125 ¯C	1	0.7 V	Adjustable	18 V	16-UFQFN	Buck		Step-Down	Surface Mount	16-UQFN (3x3)	Positive

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Buck Switching Regulator IC Positive Adjustable 0.7V 1 Output 10A 16-UFQFN
