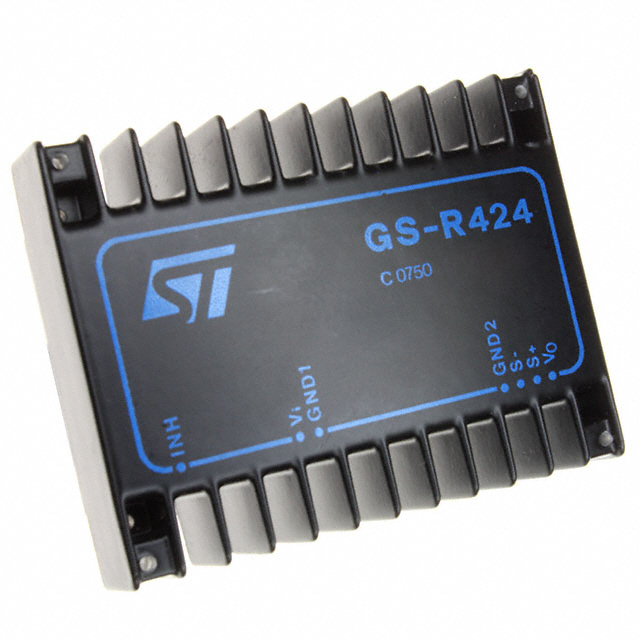

GS-R424
ObsoleteSTMicroelectronics
DC DC CONVERTER 24V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
GS-R424
ObsoleteSTMicroelectronics
DC DC CONVERTER 24V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | GS-R424 |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 4 A |
| Efficiency | 90 % |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -20 C |
| Package / Case | Module |
| Size / Dimension [x] | 85.5 mm |
| Size / Dimension [x] | 3.37 in |
| Size / Dimension [y] | 2.64 " |
| Size / Dimension [y] | 67 mm |
| Size / Dimension [z] | 21.3 mm |
| Size / Dimension [z] | 0.84 " |
| Type | Non-Isolated PoL Module |
| Voltage - Input (Max) | 46 V |
| Voltage - Input (Min) [Min] | 28 V |
| Voltage - Output 1 | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
GS-R4 Series
Non-Isolated PoL Module DC DC Converter 1 Output 24V 4A 28V - 46V Input
