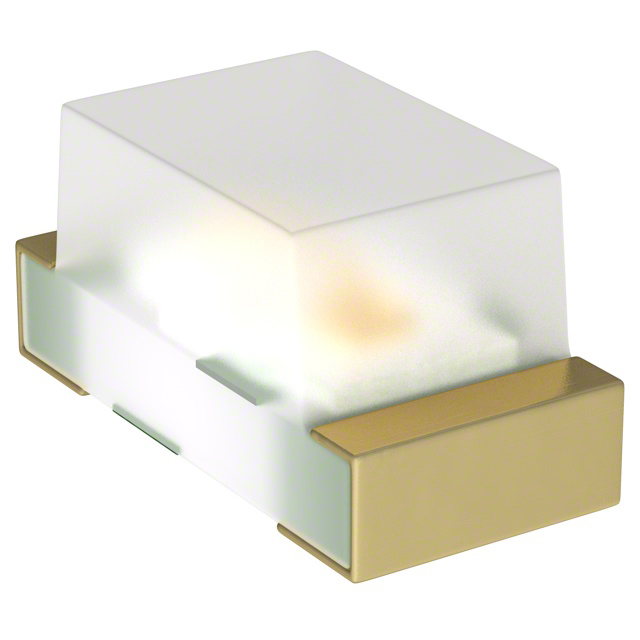

Specification	PT19-21C/L41/TR8

Current - Collector (Ic) (Max)	20 mA
Current - Dark (Id) (Max)	100 nA
Mounting Type	Surface Mount
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-25 °C
Orientation	Top View
Package / Case	0603 (1608 Metric)
Power - Max	75 mW
Voltage - Collector Emitter Breakdown (Max)	30 V
Wavelength	940 nm

PT19-21 Series

Part	Orientation	Operating Temperature (Max)	Operating Temperature (Min)	Power - Max	Current - Dark (Id) (Max)	Package / Case	Mounting Type	Wavelength	Voltage - Collector Emitter Breakdown (Max)	Current - Collector (Ic) (Max)
Everlight Electronics Co Ltd PT19-21B/L41/TR8	Top View	85 °C	-25 °C	75 mW	100 nA	0603 (1608 Metric)	Surface Mount	940 nm	30 V	20 mA
Everlight Electronics Co Ltd PT19-21C/L41/TR8	Top View	85 °C	-25 °C	75 mW	100 nA	0603 (1608 Metric)	Surface Mount	940 nm	30 V	20 mA
