US1DFA

Active

ON Semiconductor

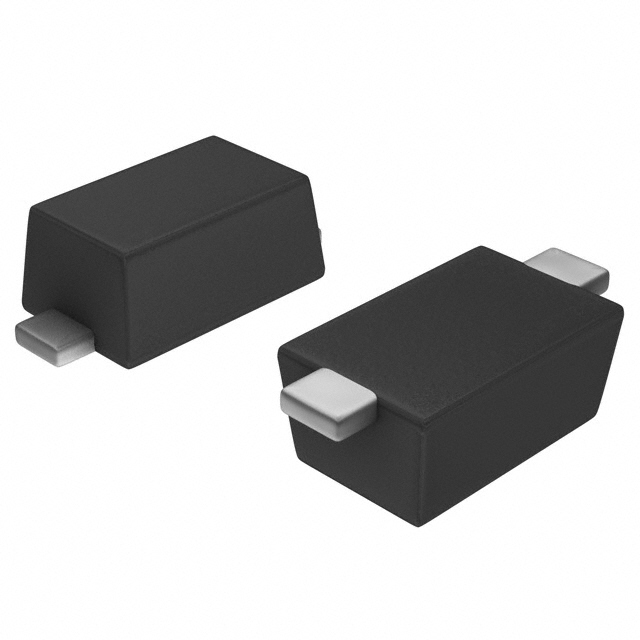

200V 1A HIGH EFFIECIENCY RECTIFIER TRR=50NS IN SOD-123FA

Search across all available documentation for this part.

Active

ON Semiconductor

200V 1A HIGH EFFIECIENCY RECTIFIER TRR=50NS IN SOD-123FA

Technical Specifications

Parameters and characteristics for this part

Specification	US1DFA

Capacitance @ Vr, F	20 pF
Current - Average Rectified (Io)	1 A
Current - Reverse Leakage @ Vr	5 µA
Mounting Type	Surface Mount
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-55 °C
Package / Case	SOD-123W
Reverse Recovery Time (trr)	50 ns
Speed	200 mA, 500 ns
Supplier Device Package	SOD-123FA
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	200 V
Voltage - Forward (Vf) (Max) @ If	950 mV

Super Fast Surface Mount Rectifiers

Part	Voltage - Forward (Vf) (Max) @ If	Voltage - DC Reverse (Vr) (Max) [Max]	Speed	Package / Case	Reverse Recovery Time (trr)	Technology	Current - Average Rectified (Io)	Mounting Type	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Current - Reverse Leakage @ Vr	Capacitance @ Vr, F	Supplier Device Package
ON Semiconductor US1DFA	950 mV	200 V	200 mA, 500 ns	SOD-123W	50 ns	Standard	1 A	Surface Mount	150 °C	-55 °C	5 µA	20 pF	SOD-123FA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Super Fast Surface Mount Rectifiers
