X2-9.0-0-FSP-SM

Active

TE Connectivity Raychem Cable Protection

X2-9.0-0-FSP-SM METER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

X2-9.0-0-FSP-SM

Active

TE Connectivity Raychem Cable Protection

X2-9.0-0-FSP-SM METER

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	X2-9.0-0-FSP-SM	X2 Series

Color	Black	Black
Features	Flame Retardant, Abrasion Resistant	Flame Retardant, Abrasion Resistant
Inner Diameter - Recovered	-	2.01 - 5.99 mm
Inner Diameter - Recovered	-	0.079 - 0.236 in
Inner Diameter - Recovered [diameter]	4.52 mm	0.51 - 15.01 mm
Inner Diameter - Recovered [diameter]	0.178 in	0.02 - 0.591 in
Inner Diameter - Supplied [diameter]	9.6 mm	1.5 - 32.11 mm
Inner Diameter - Supplied [diameter]	0.378 in	0.059 - 1.264 "
Length	164 ft	32.8 - 656.2 ft
Length	50 m	10 - 200 m
Length	Enter Number of Meters in Order Quantity	Enter Number of Meters in Order Quantity
Length	-	3.28 - 16.4 ft
Length	-	1 - 5 m
Material	Polyolefin (PO), Irradiated, Halogen Free	Polyolefin (PO), Irradiated, Halogen Free
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-30 ░C	-30 ░C
Recovered Wall Thickness	0.56 mm	0.3 - 0.89 mm
Recovered Wall Thickness	0.022 "	0.012 - 0.035 in
Recovered Wall Thickness	-	0.03 "
Shelf Life	144 Months	144 Months
Shrink Temperature	70 °C	70 °C
Shrinkage Ratio	2 to 1	2 to 1
Spool Size	-	328.1 - 656.2 '
Spool Size	-	100 - 200 m
Storage/Refrigeration Temperature [Max]	35 °C	35 °C
Storage/Refrigeration Temperature [Min]	65 °F, 18 °C	18 - 65 °F
Type	Tubing, Flexible	Tubing, Flexible

X2 Series

X2-2.0-0-SP-SM 1=200M

Part	Features	Operating Temperature [Max]	Operating Temperature [Min]	Shrink Temperature	Material	Recovered Wall Thickness	Recovered Wall Thickness	Shelf Life	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Length	Length	Color	Type	Shrinkage Ratio	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Length	Inner Diameter - Recovered	Inner Diameter - Recovered	Length [x]	Length [x]	Recovered Wall Thickness	Spool Size	Spool Size
TE Connectivity Raychem Cable Protection X2-2.0-0-SP-SM	Abrasion Resistant, Flame Retardant	125 °C	-30 ░C	70 °C	Polyolefin (PO), Irradiated, Halogen Free	0.43 mm	0.017 in	144 Months	0.102 "	2.59 mm	656.2 ft	200 m	Black	Tubing, Flexible	2 to 1	0.039 in	0.99 mm	18 °C, 65 °F	35 °C
TE Connectivity Raychem Cable Protection X2-12.0-0-FSP-SM	Abrasion Resistant, Flame Retardant	125 °C	-30 ░C	70 °C	Polyolefin (PO), Irradiated, Halogen Free	0.56 mm	0.022 "	144 Months	0.5 in	12.7 mm	164 ft	50 m	Black	Tubing, Flexible	2 to 1			18 °C, 65 °F	35 °C	Enter Number of Meters in Order Quantity	5.99 mm	0.236 in
TE Connectivity Raychem Cable Protection X2-7.0-0-SP	Abrasion Resistant, Flame Retardant	125 °C	-30 ░C	70 °C	Polyolefin (PO), Irradiated, Halogen Free	0.56 mm	0.022 "	144 Months	0.3 in	7.62 mm	82 ft	25 m	Black	Tubing, Flexible	2 to 1	0.138 in	3.51 mm	18 °C, 65 °F	35 °C				16.4 ft	5 m
TE Connectivity Raychem Cable Protection X2-9.0-0-FSP-SM	Abrasion Resistant, Flame Retardant	125 °C	-30 ░C	70 °C	Polyolefin (PO), Irradiated, Halogen Free	0.56 mm	0.022 "	144 Months	0.378 in	9.6 mm	164 ft	50 m	Black	Tubing, Flexible	2 to 1	0.178 in	4.52 mm	18 °C, 65 °F	35 °C	Enter Number of Meters in Order Quantity
TE Connectivity Raychem Cable Protection X2-18.0-0-FSP	Abrasion Resistant, Flame Retardant	125 °C	-30 ░C	70 °C	Polyolefin (PO), Irradiated, Halogen Free	0.76 mm		144 Months	0.748 in	19 mm	164 ft	50 m	Black	Tubing, Flexible	2 to 1	0.354 in	8.99 mm	18 °C, 65 °F	35 °C						0.03 "
TE Connectivity Raychem Cable Protection X2-3.5-0-SP	Abrasion Resistant, Flame Retardant	125 °C	-30 ░C	70 °C	Polyolefin (PO), Irradiated, Halogen Free	0.46 mm	0.018 in	144 Months	0.161 in	4.09 mm			Black	Tubing, Flexible	2 to 1	0.069 in	1.75 mm	18 °C, 65 °F	35 °C				3.28 ft, 16.4 ft	1 m, 5 m
TE Connectivity Raychem Cable Protection X2-6.0-0-SP	Abrasion Resistant, Flame Retardant	125 °C	-30 ░C	70 °C	Polyolefin (PO), Irradiated, Halogen Free	0.56 mm	0.022 "	144 Months	0.26 in	6.6 mm	82 ft, 328.1 ft	25 m, 100 m	Black	Tubing, Flexible	2 to 1	0.118 in	2.99 mm	18 °C, 65 °F	35 °C				3.28 ft	1 m
TE Connectivity Raychem Cable Protection X2-1.5-0-SP-SM	Abrasion Resistant, Flame Retardant	125 °C	-30 ░C	70 °C	Polyolefin (PO), Irradiated, Halogen Free	0.43 mm	0.017 in	144 Months	0.083 in	2.11 mm	656.2 ft	200 m	Black	Tubing, Flexible	2 to 1	0.03 in	0.76 mm	18 °C, 65 °F	35 °C	Enter Number of Meters in Order Quantity						656.2 '	200 m
TE Connectivity Raychem Cable Protection X2-1.0-0-SP	Abrasion Resistant, Flame Retardant	125 °C	-30 ░C	70 °C	Polyolefin (PO), Irradiated, Halogen Free	0.43 mm	0.017 in	144 Months	0.059 in	1.5 mm	82 ft, 656.2 ft	25 m, 200 m	Black	Tubing, Flexible	2 to 1	0.02 in	0.51 mm	18 °C, 65 °F	35 °C				3.28 ft, 16.4 ft	1 m, 5 m
TE Connectivity Raychem Cable Protection X2-1.0-0-SP-SM	Abrasion Resistant, Flame Retardant	125 °C	-30 ░C	70 °C	Polyolefin (PO), Irradiated, Halogen Free	0.43 mm	0.017 in	144 Months	0.059 in	1.5 mm	656.2 ft	200 m	Black	Tubing, Flexible	2 to 1	0.02 in	0.51 mm	18 °C, 65 °F	35 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Digi-Spool®, Continuous Spool	1	$ 2.37
		5	$ 2.16
		10	$ 1.64
		25	$ 1.55
		50	$ 1.47
		100	$ 1.38
	Spool	1	$ 51.19
		2	$ 47.08
		3	$ 44.83
		5	$ 42.15
		7	$ 40.47
		10	$ 38.76
		25	$ 34.70
		50	$ 32.68

Description

General part information

X2 Series

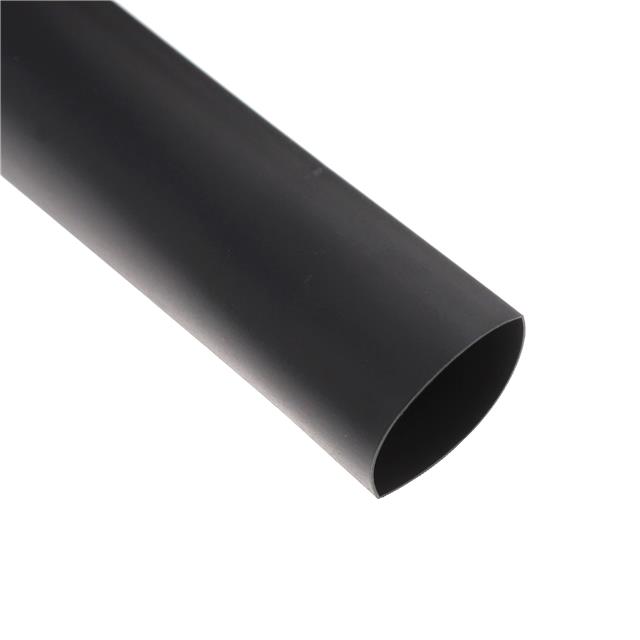

Heat Shrink Tubing, Flexible 0.378" (9.60mm) 2 to 1 Black Enter Number of Meters in Order Quantity
