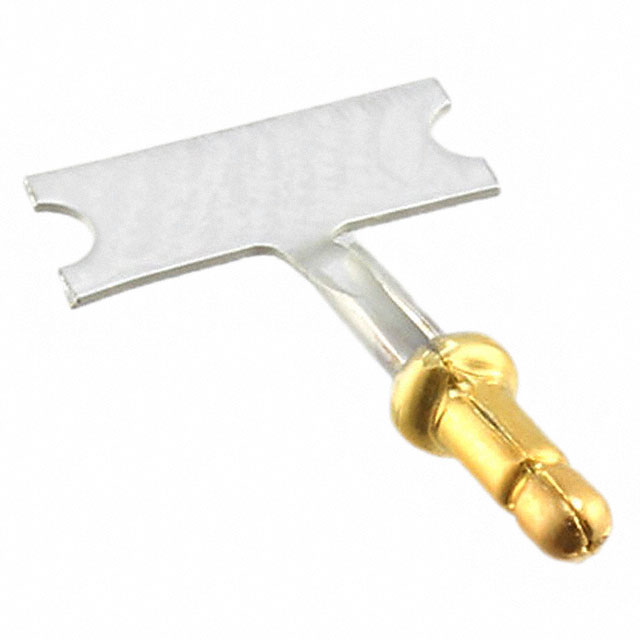

Specification	60802-1

Board Thickness (Max)	0.093 in
Board Thickness (Min)	0.062 in
Contact Finish	Gold
Contact Finish Thickness	30 µin
Contact Material	Phosphor Bronze
Flange Diameter	0.09 in
Insulation	Non-Insulated
Length - Above Flange	0.16 in
Length - Below Flange	0.15 in
Length - Overall	0.375 in
Mounting Hole Diameter (Max)	0.05 in
Mounting Hole Diameter (Min)	0.046 in
Mounting Type	Through Hole
Pin Size - Above Flange (Diameter)	0.058 in
Terminal Style	Flanged
Terminal Type	Single Post
Termination	Press-Fit

60802 Series

Part	Insulation	Board Thickness (Min)	Board Thickness (Max)	Length - Above Flange	Contact Material	Contact Finish	Mounting Type	Mounting Hole Diameter (Max)	Mounting Hole Diameter (Min)	Termination	Terminal Style	Terminal Type	Length - Overall	Flange Diameter	Pin Size - Above Flange (Diameter)	Contact Finish Thickness	Length - Below Flange

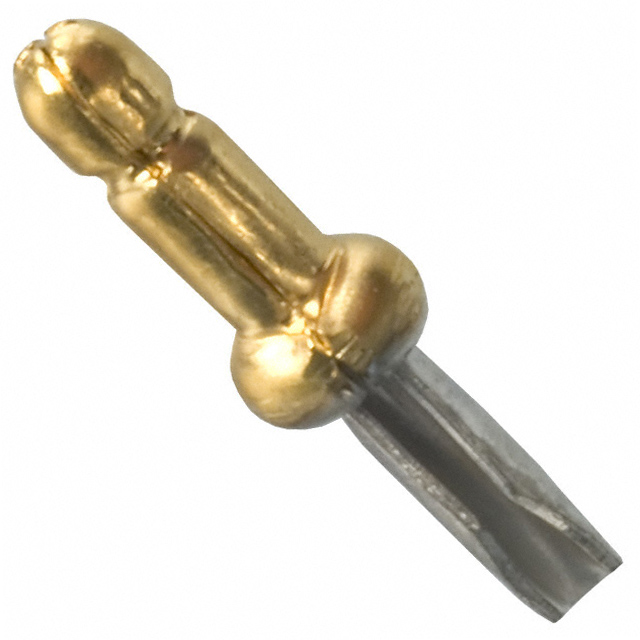

TE Connectivity AMP Connectors 3-60802-1	Non-Insulated	0.062 in	0.093 in	0.16 in	Phosphor Bronze	Gold	Through Hole	0.05 in	0.046 in	Press-Fit	Flanged	Single Post	0.375 in	0.09 in	0.058 in	30 µin	0.15 in
TE Connectivity AMP Connectors 60802-2	Non-Insulated	0.062 in	0.093 in	0.16 in	Phosphor Bronze	Tin	Through Hole	0.05 in	0.046 in	Press-Fit	Flanged	Single Post	0.375 in	0.09 in	0.058 in		0.15 in
TE Connectivity AMP Connectors 60802-6	Non-Insulated	0.062 in	0.093 in	0.16 in	Phosphor Bronze		Through Hole	0.05 in	0.046 in	Press-Fit	Flanged	Single Post	0.375 in	0.09 in	0.058 in		0.15 in
TE Connectivity AMP Connectors 60802-1	Non-Insulated	0.062 in	0.093 in	0.16 in	Phosphor Bronze	Gold	Through Hole	0.05 in	0.046 in	Press-Fit	Flanged	Single Post	0.375 in	0.09 in	0.058 in	30 µin	0.15 in
