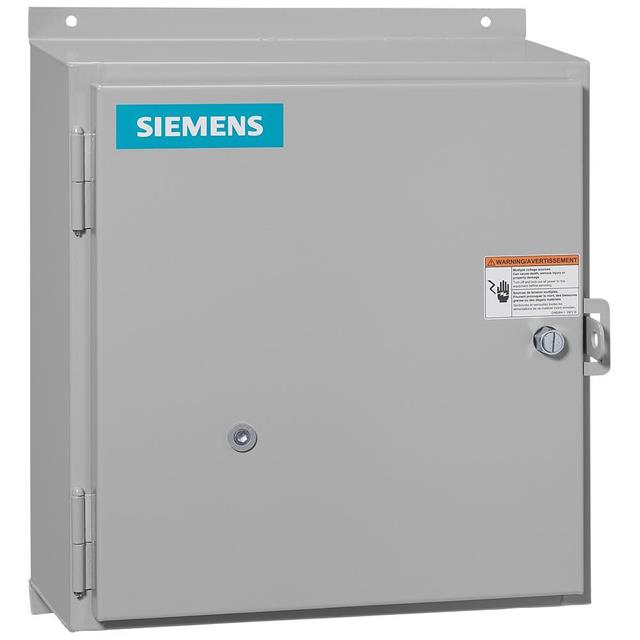

40CP32FA

Active

Siemens

CONTACTOR, SZ0,3PH,N4X,120/240V

Search across all available documentation for this part.

Active

Siemens

CONTACTOR, SZ0,3PH,N4X,120/240V

Technical Specifications

Parameters and characteristics for this part

Part	Operating Temperature [Min]	Operating Temperature [Max]	Coil Power	Operate Time	Mounting Type	Termination Style	Contact Material	Coil Voltage	Features	Must Operate Voltage	Switching Voltage	Contact Rating (Current)	Contact Form	Release Time	Coil Voltage [Min]	Coil Voltage [Max]
Siemens 40CP12BD	-20 C	40 °C	218 VA	29 ms	Chassis Mount	Screw Terminal	Copper	208 VAC	Auxiliary Contacts	176.8 VAC	240 VAC	18 A	DPST-NO (2 Form A)	24 ms
Siemens 40CP12BF	-20 C	40 °C	218 VA	29 ms	Chassis Mount	Screw Terminal	Copper	120 VAC	Auxiliary Contacts	102 VAC	240 VAC	18 A	DPST-NO (2 Form A)	24 ms
Siemens 40CP22BG	-20 C	40 °C	218 VA	29 ms	Chassis Mount	Screw Terminal	Copper		Auxiliary Contacts		600 VAC	18 A	4PST-NO (4 Form A)	24 ms	220 VAC	240 VAC
Siemens 40CP32FA	-20 C	40 °C	218 VA	29 ms	Chassis Mount	Screw Terminal	Copper		Auxiliary Contacts		600 VAC	18 A	3PST-NO (3 Form A)	24 ms	110 VAC/DC	240 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 1039.04
