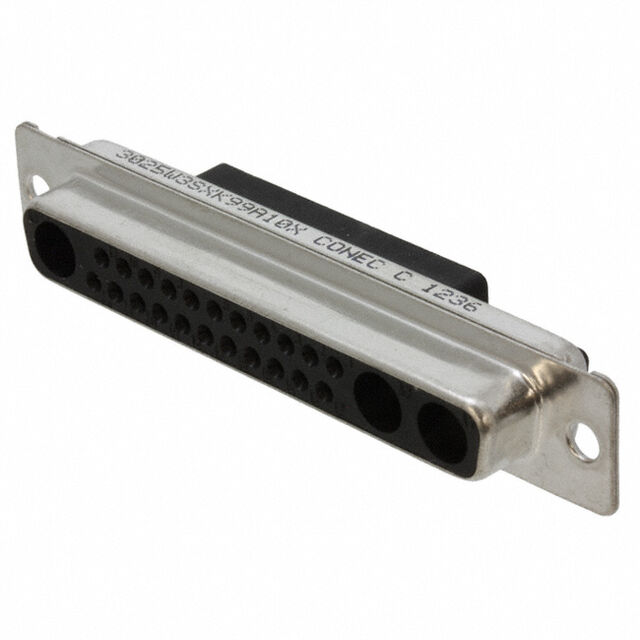

3025W3SXK99A10X

Active

Amphenol CONEC

CONN D-SUB HOUSING RCPT 25POS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

3025W3SXK99A10X

Active

Amphenol CONEC

CONN D-SUB HOUSING RCPT 25POS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3025W3SXK99A10X

Color	Black
Connector Style	D-Sub, Combo
Connector Type	Receptacle for Female Contacts
Contact Type	Power, Signal and Coax
Dielectric Material	Polybutylene Terephthalate (PBT), Polyester
Flange Feature	Housing/Shell (Unthreaded)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	25
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout	DC, C - 25W3
Shell Size, Connector Layout [Min]	4

3025W3S Series

Part	Contact Material	Connector Style	Connector Type	Color	Wire Gauge	Number of Positions	Number of Rows	Voltage Rating	Dielectric Material	Contact Finish	Flange Feature	Material Flammability Rating	Mounting Type	Shell Size, Connector Layout	Shell Size, Connector Layout [Min]	Features	Current Rating (Amps)	Contact Finish Thickness	Termination	Backset Spacing	Backset Spacing	Note	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Contact Finish Thickness	Contact Finish Thickness
Amphenol CONEC 3025W3SAM99A10X	Copper Alloy	Combo D-Sub	Receptacle Female Sockets	Green	20 AWG	25	2	250 VDC	Polybutylene Terephthalate (PBT) Glass Filled	Gold	Housing/Shell (Unthreaded)	UL94 V-0	Free Hanging (In-Line)	DC C - 25W3	4
Amphenol CONEC 3025W3SAR71AA0X			Receptacle Female Sockets
Amphenol CONEC 3025W3SAT99N20X	Copper Alloy	Combo D-Sub	Receptacle Female Sockets	Green		25	2	250 VDC	Polybutylene Terephthalate (PBT) Glass Filled	Gold	Housing/Shell (4-40)	UL94 V-0	Board Edge Right Angle Through Hole	DC C - 25W3	4	Mounting Brackets	7.5 A	Flash	Solder	0.283 in	7.2 mm
Amphenol CONEC 3025W3SCK99A10X		Combo D-Sub	Receptacle for Female Contacts			25	2		Polybutylene Terephthalate (PBT) Polyester		Housing/Shell (Unthreaded)		Free Hanging (In-Line)	DC C - 25W3	4							Contacts Not Included	-55 °C	125 °C	Power Signal and Coax
Amphenol CONEC 3025W3SAR99A10X	Copper Alloy	Combo D-Sub	Receptacle Female Sockets	Green		25	2	250 VDC	Polybutylene Terephthalate (PBT) Glass Filled	Gold	Housing/Shell (Unthreaded)	UL94 V-0	Through Hole	DC C - 25W3	4		7.5 A		Solder							8 çin	0.203 çm
Amphenol CONEC 3025W3SAM99A30X	Copper Alloy	Combo D-Sub	Receptacle Female Sockets	Green	20 AWG	25	2	250 VDC	Polybutylene Terephthalate (PBT) Glass Filled	Gold	Cable Side	UL94 V-0	Free Hanging (In-Line)	DC C - 25W3	4
Amphenol CONEC 3025W3SCR99A30X		Combo D-Sub	Receptacle Female Sockets			25	2			Gold	Housing/Shell (4-40)		Through Hole	DC C - 25W3	4				Solder				-55 °C	125 °C
Amphenol CONEC 3025W3SXK99A10X		Combo D-Sub	Receptacle for Female Contacts	Black		25	2		Polybutylene Terephthalate (PBT) Polyester		Housing/Shell (Unthreaded)		Free Hanging (In-Line)	DC C - 25W3	4							Contacts Not Included	-55 °C	125 °C	Power Signal and Coax

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 5.13
		50	$ 4.31
		100	$ 4.10
		1000	$ 2.97

Description

General part information

3025W3S Series

Receptacle for Female Contacts Housing D-Sub, Combo Connector 25 (22 + 3 Coax or Power) Position
