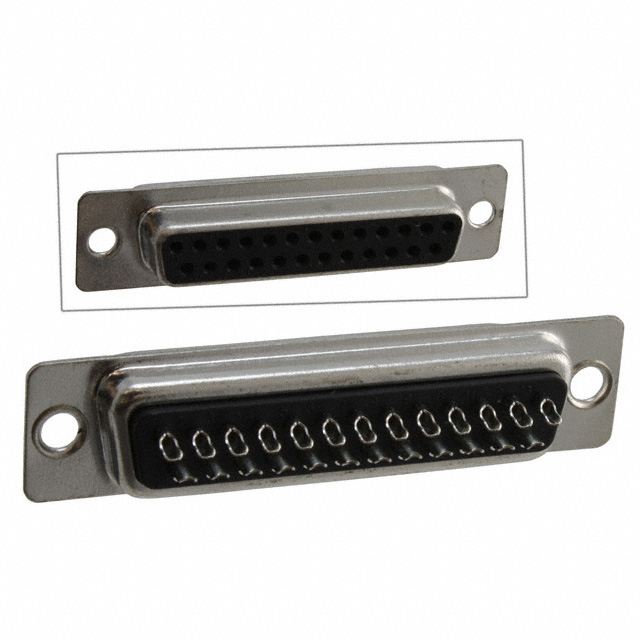

8R25-N001

Obsolete

3M (TC)

CONN D-SUB RCPT 25POS PNL MNT

Search across all available documentation for this part.

Obsolete

3M (TC)

CONN D-SUB RCPT 25POS PNL MNT

Technical Specifications

Parameters and characteristics for this part

Specification	8R25-N001

Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Thermoplastic
Flange Feature	Housing/Shell (Unthreaded)
Material Flammability Rating	UL94 V-0
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Steel
Shell Size, Connector Layout [custom]	DB, B
Shell Size, Connector Layout [custom]	3
Voltage Rating	250 VDC

Part	Dielectric Material	Voltage Rating	Connector Type	Number of Rows	Contact Finish Thickness	Connector Style	Features	Flange Feature	Contact Finish	Contact Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Shell Material, Finish	Material Flammability Rating	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Current Rating (Amps)
3M (TC) 8R25-E001	Thermoplastic	250 VDC	Receptacle Female Sockets	2	Flash	D-Sub	Filter	Housing/Shell (Unthreaded)	Gold	Signal	105 ░C	-55 °C	Copper Alloy	Steel	UL94 V-0	B DB	3	3 A
3M (TC) 8R25-N001	Thermoplastic	250 VDC	Receptacle Female Sockets	2	Flash	D-Sub		Housing/Shell (Unthreaded)	Gold	Signal	105 ░C	-55 °C	Copper Alloy	Steel	UL94 V-0	B DB	3	3 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

25 Position D-Sub Receptacle, Female Sockets Connector
