DC04-11EWA

Active

Kingbright

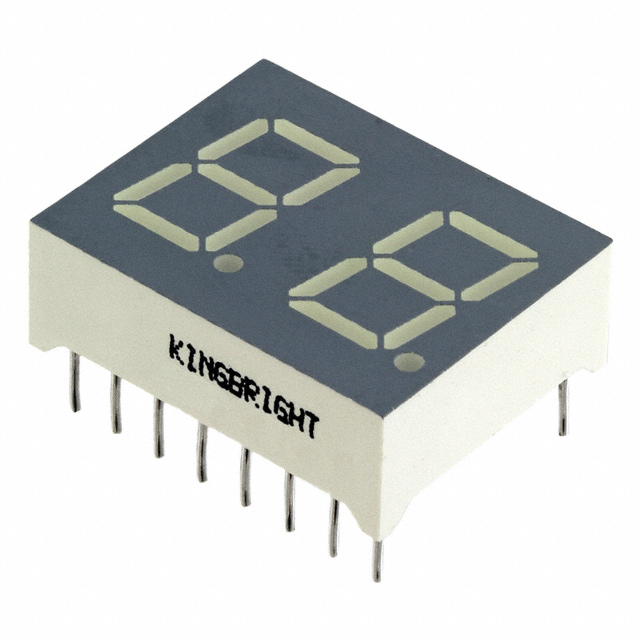

DISPLAY 7SEG 0.39" DBL RED 16DIP

Find alt

Alpha

DC04-11EWA

Active

Kingbright

DISPLAY 7SEG 0.39" DBL RED 16DIP

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

DC04-11 Series

Display Modules - LED Character and Numeric Red 7-Segment 2 Character Common Cathode 2V 20mA 0.630" H x 0.795" W x 0.276" D (16.00mm x 20.20mm x 7.00mm) 16-DIP (0.500", 12.70mm)

Technical Specifications

Parameters and characteristics for this part

Specification	DC04-11EWA

Color	Red
Common Pin	Common Cathode
Current - Test	20 mA
Digit/Alpha Size	0.39 in
Display Type	7-Segment
Millicandela Rating	6.4 mcd
Number of Characters	2 characters
Package Length	12.7 mm
Package Name	16-DIP
Package Pitch	0.5 in
Package Width	12.7 mm
Power Dissipation (Max)	75 mw
Size / Dimension Depth	0.276 in
Size / Dimension Height	0.63 in
Size / Dimension Width	0.795 in
Voltage - Forward (Vf) (Typ)	2 V
Wavelength - Peak	627 nm

DC04-11 Series

Part	Power Dissipation (Max)	Common Pin	Voltage - Forward (Vf) (Typ)	Number of Characters	Current - Test	Wavelength - Peak	Millicandela Rating	Digit/Alpha Size	Color	Package Name	Package Pitch	Package Length	Package Width	Size / Dimension Depth	Size / Dimension Width	Size / Dimension Height	Display Type
Kingbright DC04-11SYKWA	75 mw	Common Cathode	2 V	2 characters	20 mA	590 nm	84 mcd	0.39 in	Yellow	16-DIP	0.5 in	12.7 mm	12.7 mm	0.276 in	0.63 in	0.795 in	7-Segment
Kingbright DC04-11SRWA	75 mw	Common Cathode	1.85 V	2 characters	20 mA	660 nm	29 mcd	0.39 in	Red	16-DIP	0.5 in	12.7 mm	12.7 mm	0.276 in	0.795 in	0.63 in	7-Segment
Kingbright DC04-11CGKWA	75 mw	Common Cathode	2.1 V	2 characters	20 mA	574 nm	25 mcd	0.39 in	Green	16-DIP	0.5 in	12.7 mm	12.7 mm	0.276 in	0.63 in	0.795 in	7-Segment
Kingbright DC04-11SURKWA	75 mw	Common Cathode	1.95 V	2 characters	20 mA	645 nm	54 mcd	0.39 in	Red	16-DIP	0.5 in	12.7 mm	12.7 mm	0.276 in	0.63 in	0.795 in	7-Segment
Kingbright DC04-11EWA	75 mw	Common Cathode	2 V	2 characters	20 mA	627 nm	6.4 mcd	0.39 in	Red	16-DIP	0.5 in	12.7 mm	12.7 mm	0.276 in	0.795 in	0.63 in	7-Segment
Kingbright DC04-11GWA	62.5 mW	Common Cathode	2.2 V	2 characters	20 mA	565 nm	8 mcd	0.39 in	Green	16-DIP	0.5 in	12.7 mm	12.7 mm	0.276 in	0.795 in	0.63 in	7-Segment

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

DC04-11EWA | Datasheet
