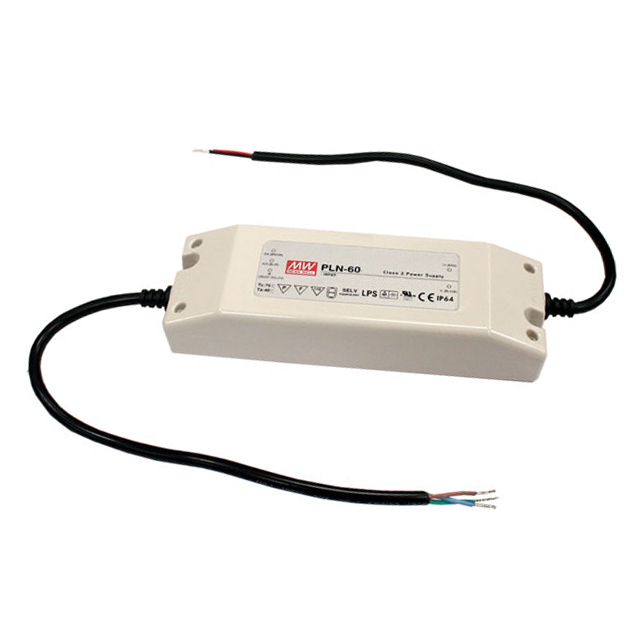

PLN-60-48
NRNDMEAN WELL USA Inc.
LED DRVR CC AC/DC 33.6-48V 1.3A
PLN-60-48
NRNDMEAN WELL USA Inc.
LED DRVR CC AC/DC 33.6-48V 1.3A
Description
General part information
PLN-60 Series
1.3A 33.6 ~ 48V Constant Current LED Driver AC DC Converter Topology 1 Output
Technical Specifications
Parameters and characteristics for this part
| Specification | PLN-60-48 |
|---|---|
| Approval Agency | CB, PSE, UR, CE, TUV |
| Current - Output (Max) | 1.3 A |
| Efficiency | 89 % |
| Features | OCP, SCP, OTP, OVP |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 50 °C |
| Operating Temperature (Min) | -30 °C |
| Power (Watts) | 62 W |
| Ratings | IP64 |
| Size / Dimension Height | 1.38 in |
| Size / Dimension Length | 7.13 in |
| Size / Dimension Width | 2.42 in |
| Termination Style | Wire Leads |
| Topology | AC DC Converter |
| Type | Constant Current |
| Voltage - Input (Max) | 295 VAC |
| Voltage - Input (Min) | 90 VAC |
| Voltage - Isolation | 3750 VDC |
| Voltage - Output (Max) | 48 V |
| Voltage - Output (Min) | 33.6 V |
