PT07A-14-19S
ActiveAmphenol Industrial Operations

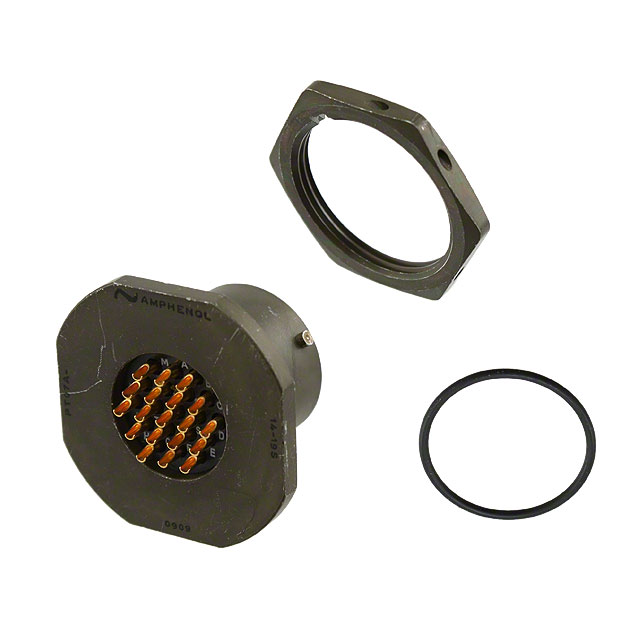

CONN RCPT FMALE 19P SOLDER CUP
Deep-Dive with AI
Search across all available documentation for this part.
PT07A-14-19S
ActiveAmphenol Industrial Operations
CONN RCPT FMALE 19P SOLDER CUP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | PT07A-14-19S | PT07A Series |
|---|---|---|
| Applications | Military, Mass Transit, Instrumentation, Aerospace, Industrial | Military, Mass Transit, Instrumentation, Aerospace, Industrial, Communication Systems |
| Backshell Material, Plating | Olive Drab Cadmium, Aluminum | Olive Drab Cadmium, Aluminum, Black Zinc Cobalt |
| Color | Olive Drab | Olive Drab, Black |
| Connector Type | Receptacle, Female Sockets | Receptacle, Male Pins, Receptacle, Female Sockets |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Copper Alloy | Copper Alloy |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Insert Material | Neoprene | Neoprene |
| Mounting Feature | Bulkhead - Front Side Nut | Bulkhead - Front Side Nut |
| Number of Positions | 19 | 2 - 61 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation | N | N, W, X |
| Primary Material | Metal | Metal |
| Qualification | MIL-DTL-26482 Series I | MIL-DTL-26482 Series I |
| Shell Finish | Olive Drab Chromate over Cadmium | Olive Drab Chromate over Cadmium, Black Zinc Cobalt |
| Shell Material | Aluminum | Aluminum |
| Shell Size - Insert | - | 8-4, 8-3, 8-2, 12-8 |
| Shell Size - Insert | - | 15 - 98 |
| Shell Size - Insert | - | 10 - 24 |
| Shell Size - Insert [Max] [custom] | 19 | 19 |
| Shell Size - Insert [Min] [custom] | 14 | 14 |
| Shielding | Unshielded | Unshielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 34.94 | |
PT07A Series
CONN RCPT MALE 4P GOLD SLDR CUP
| Part | Orientation | Mounting Feature | Shell Material | Color | Contact Finish - Mating | Qualification | Number of Positions | Insert Material | Shielding | Connector Type | Fastening Type | Operating Temperature [Min] | Operating Temperature [Max] | Shell Size - Insert | Contact Material | Primary Material | Applications | Backshell Material, Plating | Shell Finish | Shell Size - Insert [Max] | Shell Size - Insert [Min] | Shell Size - Insert [Max] [custom] | Shell Size - Insert [Min] [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Industrial Operations PT07A-8-4P | N | Bulkhead - Front Side Nut | Aluminum | Olive Drab | Gold | MIL-DTL-26482 Series I | 4 | Neoprene | Unshielded | Male Pins, Receptacle | Bayonet Lock | -55 °C | 125 °C | 8-4 | Copper Alloy | Metal | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Aluminum, Olive Drab Cadmium | Olive Drab Chromate over Cadmium | ||||
Amphenol Industrial Operations PT07A-8- 4P | N | Bulkhead - Front Side Nut | Aluminum | Olive Drab | Gold | MIL-DTL-26482 Series I | 4 | Neoprene | Unshielded | Male Pins, Receptacle | Bayonet Lock | -55 °C | 125 °C | 8-4 | Copper Alloy | Metal | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Aluminum, Olive Drab Cadmium | Olive Drab Chromate over Cadmium | ||||
Amphenol Industrial Operations PT07A-8-3P | N | Bulkhead - Front Side Nut | Aluminum | Olive Drab | Gold | MIL-DTL-26482 Series I | Neoprene | Unshielded | Male Pins, Receptacle | Bayonet Lock | -55 °C | 125 °C | 8-3 | Copper Alloy | Metal | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Aluminum, Olive Drab Cadmium | Olive Drab Chromate over Cadmium | |||||
Amphenol Industrial Operations PT07A-8-2S | N | Bulkhead - Front Side Nut | Aluminum | Olive Drab | Gold | MIL-DTL-26482 Series I | 2 | Neoprene | Unshielded | Receptacle, Female Sockets | Bayonet Lock | -55 °C | 125 °C | 8-2 | Copper Alloy | Metal | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Aluminum, Olive Drab Cadmium | Olive Drab Chromate over Cadmium | ||||
Amphenol Industrial Operations PT07A-12-8P | N | Bulkhead - Front Side Nut | Aluminum | Olive Drab | Gold | MIL-DTL-26482 Series I | 8 | Neoprene | Unshielded | Male Pins, Receptacle | Bayonet Lock | -55 °C | 125 °C | 12-8 | Copper Alloy | Metal | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Aluminum, Olive Drab Cadmium | Olive Drab Chromate over Cadmium | ||||
Amphenol Industrial Operations PT07A-8-3PW | W | Bulkhead - Front Side Nut | Aluminum | Olive Drab | Gold | MIL-DTL-26482 Series I | Neoprene | Unshielded | Male Pins, Receptacle | Bayonet Lock | -55 °C | 125 °C | 8-3 | Copper Alloy | Metal | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Olive Drab Chromate over Cadmium | ||||||
Amphenol Industrial Operations PT07A-24-61P(113) | N | Bulkhead - Front Side Nut | MIL-DTL-26482 Series I | 61 | Neoprene | Unshielded | Male Pins, Receptacle | Bayonet Lock | -55 °C | 125 °C | Copper Alloy | Aerospace, Industrial, Instrumentation, Mass Transit, Military | 61 | 24 | |||||||||
Amphenol Industrial Operations PT07A-14-19SPCT | N | Bulkhead - Front Side Nut | MIL-DTL-26482 Series I | 19 | Neoprene | Unshielded | Receptacle, Female Sockets | Bayonet Lock | -55 °C | 125 °C | Copper Alloy | Aerospace, Industrial, Instrumentation, Mass Transit, Military | 19 | 14 | |||||||||
Amphenol Industrial Operations PT07A-10-98SX | X | Bulkhead - Front Side Nut | Aluminum | Olive Drab | Gold | MIL-DTL-26482 Series I | 6 | Neoprene | Unshielded | Receptacle, Female Sockets | Bayonet Lock | -55 °C | 125 °C | Copper Alloy | Metal | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Olive Drab Chromate over Cadmium | 98 | 10 | ||||
Amphenol Industrial Operations PT07A-12-10P | N | Bulkhead - Front Side Nut | Aluminum | Olive Drab | Gold | MIL-DTL-26482 Series I | 10 | Neoprene | Unshielded | Male Pins, Receptacle | Bayonet Lock | -55 °C | 125 °C | Copper Alloy | Metal | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Aluminum, Olive Drab Cadmium | Olive Drab Chromate over Cadmium | |||||
Amphenol Industrial Operations PT07A-16-26P | N | Bulkhead - Front Side Nut | Aluminum | Olive Drab | Gold | MIL-DTL-26482 Series I | 26 | Neoprene | Unshielded | Male Pins, Receptacle | Bayonet Lock | -55 °C | 125 °C | Copper Alloy | Metal | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Aluminum, Olive Drab Cadmium | Olive Drab Chromate over Cadmium | 26 | 16 | |||
Amphenol Industrial Operations PT07A-8-3SX | X | Bulkhead - Front Side Nut | Aluminum | Olive Drab | Gold | MIL-DTL-26482 Series I | Neoprene | Unshielded | Receptacle, Female Sockets | Bayonet Lock | -55 °C | 125 °C | 8-3 | Copper Alloy | Metal | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Olive Drab Chromate over Cadmium | ||||||
Amphenol Industrial Operations PT07A-14-19S | N | Bulkhead - Front Side Nut | Aluminum | Olive Drab | Gold | MIL-DTL-26482 Series I | 19 | Neoprene | Unshielded | Receptacle, Female Sockets | Bayonet Lock | -55 °C | 125 °C | Copper Alloy | Metal | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Aluminum, Olive Drab Cadmium | Olive Drab Chromate over Cadmium | 19 | 14 | |||
Amphenol Industrial Operations PT07A-14-15S | N | Bulkhead - Front Side Nut | Aluminum | Olive Drab | Gold | MIL-DTL-26482 Series I | 15 | Neoprene | Unshielded | Receptacle, Female Sockets | Bayonet Lock | -55 °C | 125 °C | Copper Alloy | Metal | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Aluminum, Olive Drab Cadmium | Olive Drab Chromate over Cadmium | 15 | 14 | |||
Amphenol Industrial Operations PT07A16-26P-027 | N | Bulkhead - Front Side Nut | Aluminum | Black | Gold | MIL-DTL-26482 Series I | 26 | Neoprene | Unshielded | Male Pins, Receptacle | Bayonet Lock | -55 °C | 125 °C | Copper Alloy | Metal | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit | Aluminum, Black Zinc Cobalt | Black Zinc Cobalt | 26 | 16 | |||
Amphenol Industrial Operations PT07A-8-3S | N | Bulkhead - Front Side Nut | Aluminum | Olive Drab | Gold | MIL-DTL-26482 Series I | Neoprene | Unshielded | Receptacle, Female Sockets | Bayonet Lock | -55 °C | 125 °C | 8-3 | Copper Alloy | Metal | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Aluminum, Olive Drab Cadmium | Olive Drab Chromate over Cadmium |
Description
General part information
PT07A Series
19 Position Circular Connector Receptacle, Female Sockets Solder Cup
