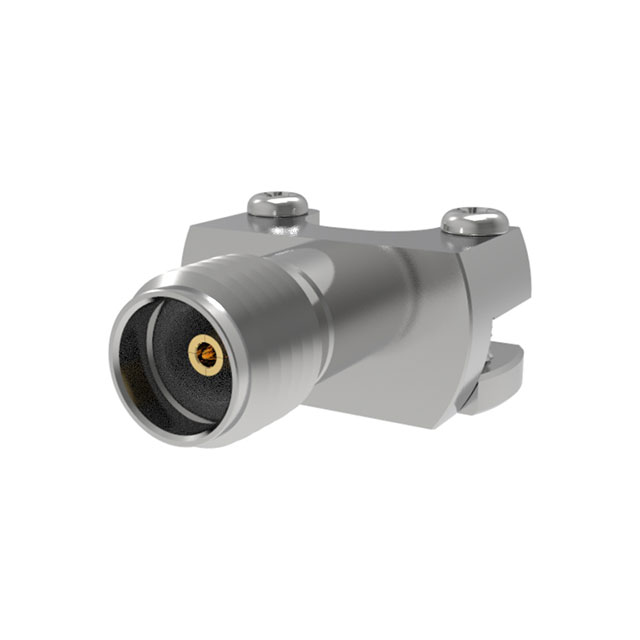

TMB-E5F2-1L1

Active

CarlisleIT

3.5(F)2-H,EL,FIELDREP

Search across all available documentation for this part.

Active

CarlisleIT

3.5(F)2-H,EL,FIELDREP

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TMB-E5F2-1L1	TMB-E5 Series

Body Finish	-	Gold
Body Material	Stainless Steel	Stainless Steel, Brass
Center Contact Material	Beryllium Copper	Beryllium Copper
Center Contact Plating	Gold	Gold
Connector Style	3.5 mm	3.5 mm
Connector Type	Female Socket, Jack	Female Socket, Jack
Contact Termination	Compression	Compression, Solder
Features	Field Replaceable, For Hermetically Sealed Pin	Field Replaceable, For Hermetically Sealed Pin
Frequency - Max [Max]	34 GHz	34 GHz
Housing Color	Silver	Silver, Gold
Impedance	50 Ohms	50 Ohms
Insertion Loss	0.2 dB	0.2 - 0.6 dB
Mating Cycles	500	500
Mounting Type	Board Edge, End Launch	Board Edge, End Launch
Number of Ports	1	1
Operating Temperature [Max]	165 °C	165 °C
Operating Temperature [Min]	-65 ░C	-65 ░C
Shield Termination	Screw	Screw, Solder
Voltage Rating	400 V	400 V

3.5(F)2-H,EL,FIELDREP

Part	Operating Temperature [Min]	Operating Temperature [Max]	Shield Termination	Body Material	Mounting Type	Connector Type	Voltage Rating	Connector Style	Center Contact Material	Center Contact Plating	Housing Color	Impedance	Features	Frequency - Max [Max]	Insertion Loss	Mating Cycles	Number of Ports	Contact Termination	Body Finish
CarlisleIT TMB-E5F2-1L1	-65 ░C	165 °C	Screw	Stainless Steel	Board Edge, End Launch	Female Socket, Jack	400 V	3.5 mm	Beryllium Copper	Gold	Silver	50 Ohms	Field Replaceable, For Hermetically Sealed Pin	34 GHz	0.2 dB	500	1	Compression
CarlisleIT TMB-E5FS-1S1	-65 ░C	165 °C	Solder	Brass	Board Edge, End Launch	Female Socket, Jack	400 V	3.5 mm	Beryllium Copper	Gold	Gold	50 Ohms		34 GHz	0.6 dB	500	1	Solder	Gold
CarlisleIT TMB-E5FS-1S1	-65 ░C	165 °C	Solder	Brass	Board Edge, End Launch	Female Socket, Jack	400 V	3.5 mm	Beryllium Copper	Gold	Gold	50 Ohms		34 GHz	0.6 dB	500	1	Solder	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 34.12
