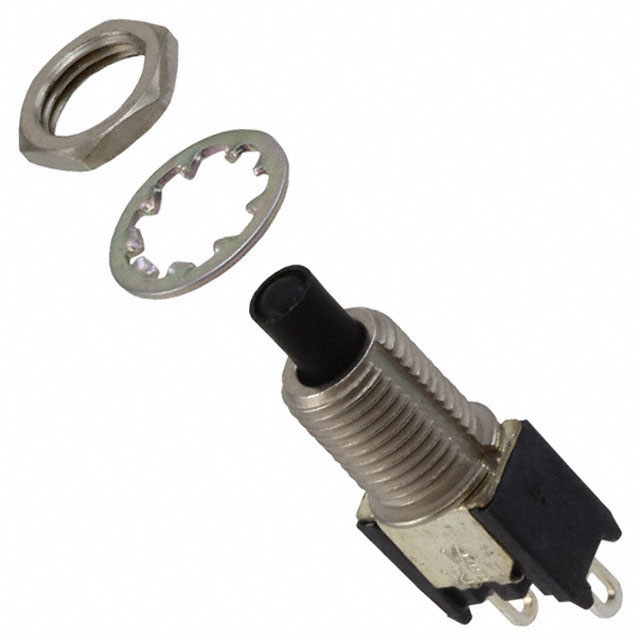

TPF13C0

Obsolete

TE Connectivity Raychem Cable Protection

SWITCH PUSH SPST-NO 1A 125V

Search across all available documentation for this part.

Obsolete

TE Connectivity Raychem Cable Protection

SWITCH PUSH SPST-NO 1A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	TPF13C0

Actuator Marking	No Marking
Actuator Type	Round, Plunger
Circuit	SPST-NO
Color - Actuator/Cap	Black
Electrical Life	60000 Cycles
Mounting Type	Panel Mount, Rear
Operating Temperature [Max]	65 °C
Operating Temperature [Min]	-30 ░C
Panel Cutout Dimensions [diameter]	0.25 in
Switch Function	Off-Mom
Termination Style	Solder Lug
Type	Standard
Voltage Rating - AC	125 V
Voltage Rating - DC	20 V

Part	Circuit	Panel Cutout Dimensions [diameter]	Voltage Rating - AC	Mounting Type	Voltage Rating - DC	Actuator Type	Actuator Marking	Termination Style	Type	Electrical Life	Operating Temperature [Max]	Operating Temperature [Min]	Color - Actuator/Cap	Switch Function
TE Connectivity Raychem Cable Protection TPF13C2	SPST-NO	0.25 in	125 V	Panel Mount Rear	20 V	Round Plunger	No Marking	Solder Lug	Standard	60000 Cycles	65 °C	-30 ░C	Red	Off-Mom
TE Connectivity Raychem Cable Protection TPF13F2	SPDT	0.25 in	125 V	Panel Mount Rear	20 V	Round Plunger	No Marking	Solder Lug	Standard	60000 Cycles	65 °C	-30 ░C	Red	On-Mom
TE Connectivity Raychem Cable Protection TPF13C0	SPST-NO	0.25 in	125 V	Panel Mount Rear	20 V	Round Plunger	No Marking	Solder Lug	Standard	60000 Cycles	65 °C	-30 ░C	Black	Off-Mom

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Pushbutton Switch SPST-NO Standard Panel Mount, Rear
