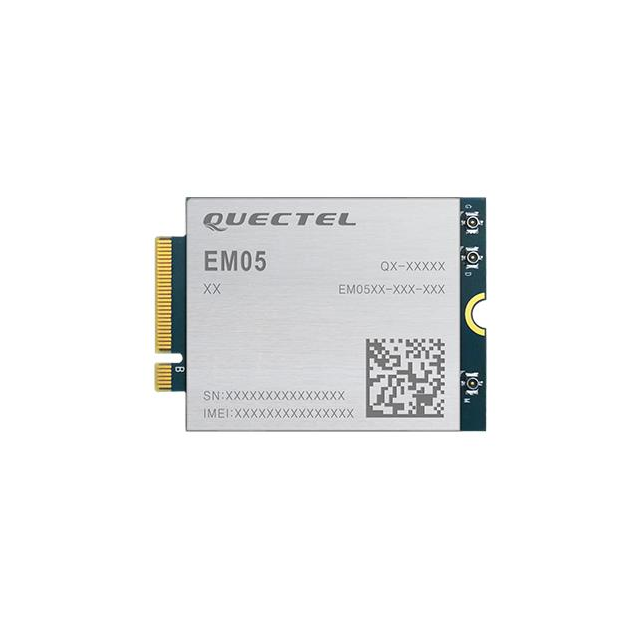

EM05EFA-512-SGAS

Active

Quectel

RF TXRX MOD CEL/NAV CARD

Search across all available documentation for this part.

Active

Quectel

RF TXRX MOD CEL/NAV CARD

Technical Specifications

Parameters and characteristics for this part

Specification	EM05EFA-512-SGAS

Antenna Type	Antenna Not Included
Current - Transmitting	20 mA
Data Rate	150 Mbps
Mounting Type	Card Edge
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-30 ░C
Package / Case	Module
Protocol	GNSS, GLONASS, LTE, WCDMA, Galileo, GPS, HSPA+, Beidou
RF Family/Standard	Cellular, Navigation
Serial Interfaces	USB
Utilized IC / Part	MDM9207-0
Voltage - Supply [Max]	4.4 V
Voltage - Supply [Min]	3.135 V

Part	Serial Interfaces	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply [Min]	Voltage - Supply [Max]	Package / Case	Protocol	Data Rate	Mounting Type	Antenna Type	Utilized IC / Part	Current - Transmitting	RF Family/Standard
Quectel EM05EFA-512-SGAS	USB	70 °C	-30 ░C	3.135 V	4.4 V	Module	Beidou Galileo GLONASS GNSS GPS HSPA+ LTE WCDMA	150 Mbps	Card Edge	Antenna Not Included	MDM9207-0	20 mA	Cellular Navigation

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cellular, Navigation BeiDou, Galileo, GLONASS, GPS, GNSS, HSPA+, LTE, WCDMA Transceiver Module Antenna Not Included Card Edge
