H1DXH-2036M

Active

Assmann WSW Components

IDC CBL - HHKR20H/AE20M/X

Search across all available documentation for this part.

Active

Assmann WSW Components

IDC CBL - HHKR20H/AE20M/X

Technical Specifications

Parameters and characteristics for this part

Specification	H1DXH-2036M

Cable Termination	IDC
Color	Ribbon, Multiple
Connector Type	Socket to Cable
Contact Finish	Gold
Contact Finish Thickness	15 µin
Contact Finish Thickness	0.38 µm
Features	Polarizing Key, Strain Relief
Length [x]	3 ft
Length [x]	914.4 mm
Number of Positions	20
Number of Rows	2
Pitch - Cable	0.05 "
Pitch - Cable	1.27 mm
Pitch - Connector	0.1 in
Pitch - Connector	2.54 mm
Shielding	Unshielded

Part	Number of Positions	Number of Rows	Shielding	Length [x]	Length [x]	Pitch - Connector	Pitch - Connector	Connector Type	Pitch - Cable	Pitch - Cable	Cable Termination	Features	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Color
Assmann WSW Components H1DXH-2036G	20	2	Unshielded	3 ft	914.4 mm	0.1 in	2.54 mm	Socket to Cable	0.05 "	1.27 mm	IDC	Polarizing Key Strain Relief	15 µin	0.38 µm	Gold
Assmann WSW Components H1DXH-2036M	20	2	Unshielded	3 ft	914.4 mm	0.1 in	2.54 mm	Socket to Cable	0.05 "	1.27 mm	IDC	Polarizing Key Strain Relief	15 µin	0.38 µm	Gold	Multiple Ribbon

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

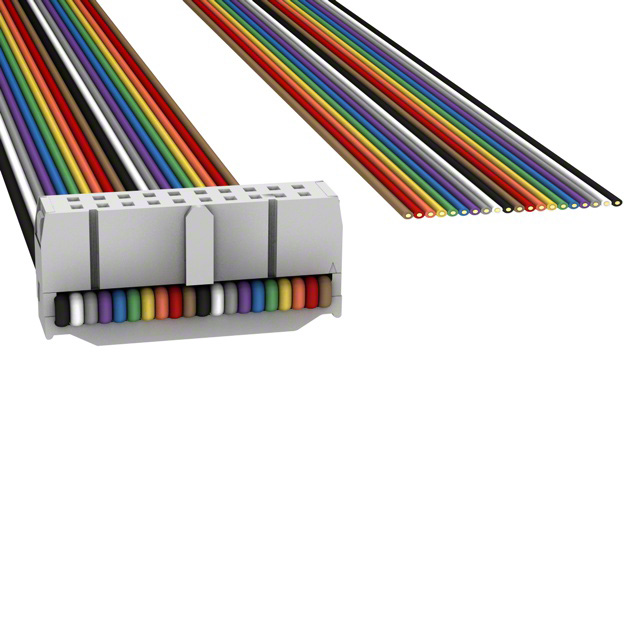

20 Position Cable Assembly Rectangular Socket to Cable 3.00' (914.40mm)
