1112-4018

Active

Amphenol SV Microwave

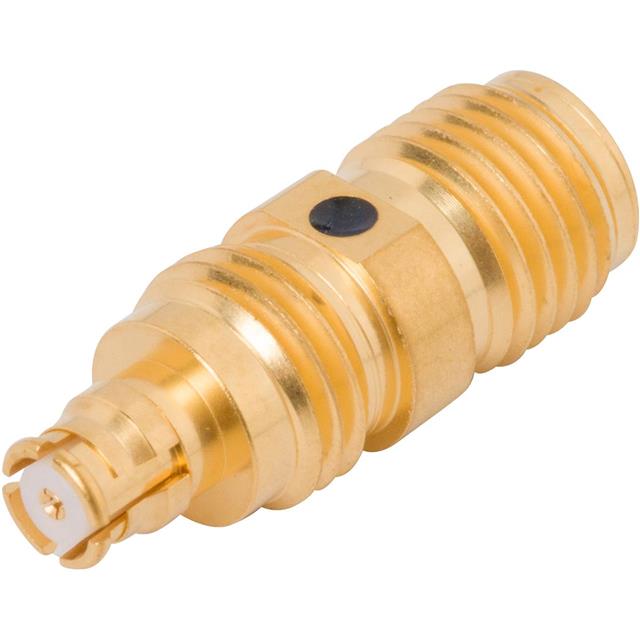

CONN ADAPT SMP JACK TO SMA JACK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1112-4018

Active

Amphenol SV Microwave

CONN ADAPT SMP JACK TO SMA JACK

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1112-4018	1112-40 Series

Adapter Series	SMA to SMP	SMP to SMP, SMA to SMP
Adapter Type	Jack to Jack	Plug to Jack, Jack to Jack
Body Finish	Gold	Gold; Passivated, Gold
Body Material	Beryllium Copper	Beryllium Copper, Stainless Steel
Center Contact Material	Beryllium Copper	Beryllium Copper
Center Contact Plating	Gold	Gold
Center Gender	Female to Female	Female to Female
Conversion Type	Between Series	Same Series, Between Series
Convert From (Adapter End)	Female Socket, SMA Jack	SMP Plug, Male Pin, Female Socket, SMA Jack
Convert To (Adapter End)	Female Socket, SMP Jack	Female Socket, SMP Jack
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Fastening Type	Threaded, Snap-On	Snap-On, Threaded
Features	EMI Ring	EMI Ring, Full Detent, Limited Detent, Smooth Bore
Frequency - Max [Max]	20 GHz	18 - 20 GHz
Impedance	50 Ohms	50 Ohms
Insertion Loss	-	0.3 dB
Mating Cycles	-	500 - 1000
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Style	Straight	Straight

1112-40 Series

SMP MALE TO FEMALE ADAPTER, FD /INDIVIDUAL - TRAY (PACK FILL QTY: 100)

Part	Mounting Type	Adapter Type	Style	Center Contact Material	Fastening Type	Dielectric Material	Body Material	Frequency - Max [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Center Contact Plating	Features	Conversion Type	Insertion Loss	Adapter Series	Convert From (Adapter End)	Body Finish	Impedance	Convert To (Adapter End)	Center Gender	Mating Cycles
Amphenol SV Microwave 1112-4009	Free Hanging (In-Line)	Plug to Jack	Straight	Beryllium Copper	Snap-On	Polytetrafluoroethylene (PTFE)	Beryllium Copper, Stainless Steel	18 GHz	-55 °C	125 °C	Gold	EMI Ring, Full Detent	Same Series	0.3 dB	SMP to SMP	SMP Plug, Male Pin	Gold; Passivated	50 Ohms	Female Socket, SMP Jack
Amphenol SV Microwave 1112-4018	Free Hanging (In-Line)	Jack to Jack	Straight	Beryllium Copper	Snap-On, Threaded	Polytetrafluoroethylene (PTFE)	Beryllium Copper	20 GHz	-55 °C	125 °C	Gold	EMI Ring	Between Series		SMA to SMP	Female Socket, SMA Jack	Gold	50 Ohms	Female Socket, SMP Jack	Female to Female
Amphenol SV Microwave 1112-4011	Free Hanging (In-Line)	Plug to Jack	Straight	Beryllium Copper	Snap-On	Polytetrafluoroethylene (PTFE)	Beryllium Copper, Stainless Steel	18 GHz	-55 °C	125 °C	Gold	EMI Ring, Limited Detent	Same Series	0.3 dB	SMP to SMP	SMP Plug, Male Pin	Gold; Passivated	50 Ohms	Female Socket, SMP Jack		500
Amphenol SV Microwave 1112-4012	Free Hanging (In-Line)	Plug to Jack	Straight	Beryllium Copper	Snap-On	Polytetrafluoroethylene (PTFE)	Beryllium Copper, Stainless Steel	18 GHz	-55 °C	125 °C	Gold	EMI Ring, Smooth Bore	Same Series	0.3 dB	SMP to SMP	SMP Plug, Male Pin	Gold; Passivated	50 Ohms	Female Socket, SMP Jack		1000

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 44.85
		10	$ 41.16
		25	$ 39.57
		50	$ 38.25
		100	$ 36.14
		250	$ 35.09

Description

General part information

1112-40 Series

Adapter Coaxial Connector SMA Jack, Female Socket To SMP Jack, Female Socket 50 Ohms
