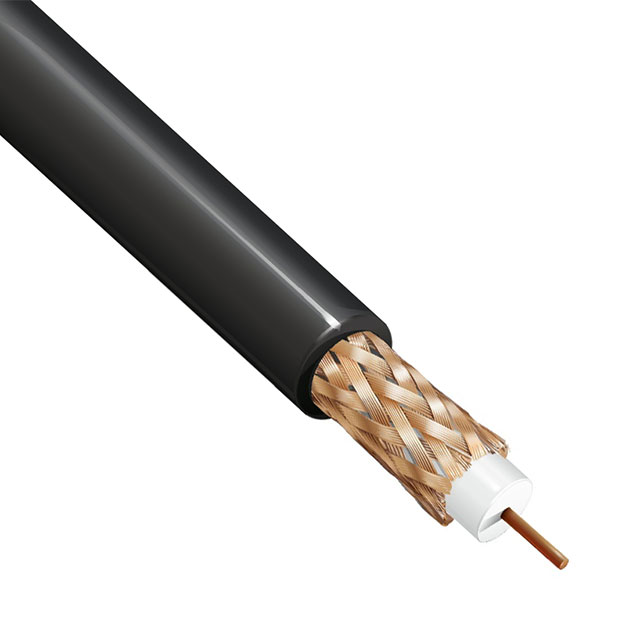

543945 010U500

Obsolete

Belden Inc.

CABLE COAXIAL RG-59 20AWG 500'

Search across all available documentation for this part.

Obsolete

Belden Inc.

CABLE COAXIAL RG-59 20AWG 500'

Technical Specifications

Parameters and characteristics for this part

Specification	543945 010U500

Cable Group	RG-59
Cable Type	Coaxial
Conductor Material	Copper, Bare
Conductor Strand	Solid
Dielectric Diameter [diameter]	0.145 "
Dielectric Diameter [diameter]	3.68 mm
Dielectric Material	Foam Polyethylene (FPE)
Impedance	75 Ohms
Jacket (Insulation) Diameter [diameter]	0.232 in
Jacket (Insulation) Diameter [diameter]	5.89 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Black
Length	152.4 m
Length	6000 in
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	-30 ░C
Shield Coverage [custom]	93 %
Shield Material	Copper, Bare
Shield Type	Braid
Usage	CCTV
VoP, Velocity of Propagation	83
Wire Gauge	20 AWG

Part	Impedance	Cable Group	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Material	Shield Material	VoP, Velocity of Propagation	Conductor Strand	Shield Coverage [custom]	Jacket Color	Conductor Material	Wire Gauge	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Cable Type	Dielectric Material	Usage	Shield Type	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	Length	Length
Belden Inc. 543945X010U1000
Belden Inc. 543945 010U500	75 Ohms	RG-59	-30 ░C	75 ░C	Poly-Vinyl Chloride (PVC)	Copper Bare	83	Solid	93 %	Black	Copper Bare	20 AWG	0.232 in	5.89 mm	Coaxial	Foam Polyethylene (FPE)	CCTV	Braid	0.145 "	3.68 mm	152.4 m	6000 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Coaxial Cable 20 AWG RG-59 500.0' (152.40m) 75 Ohms
