T37120-14-0

Active

Curtis Industries

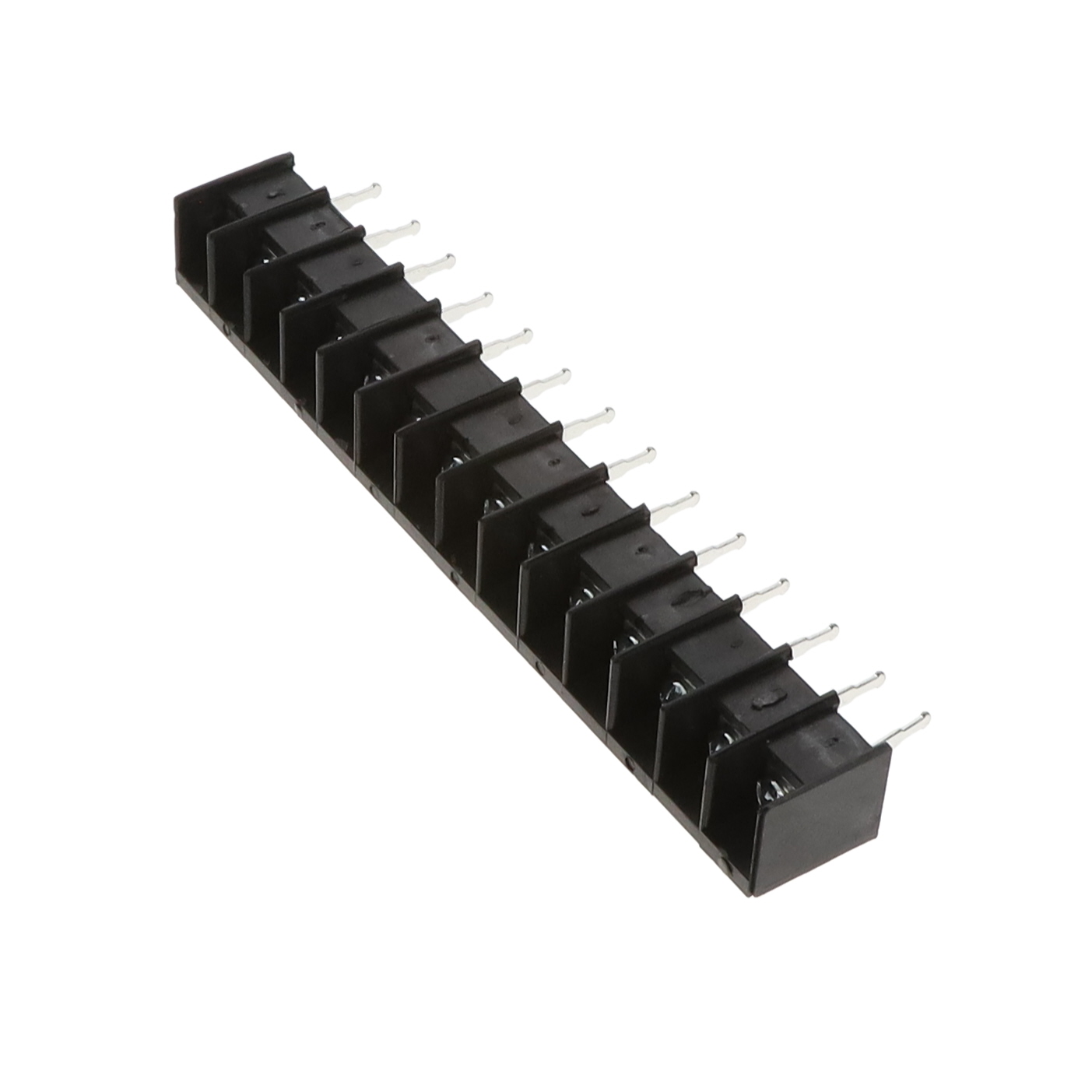

CONN BARRIER STRP 14CIRC 0.375"

Deep-Dive with AI

Search across all available documentation for this part.

T37120-14-0

Active

Curtis Industries

CONN BARRIER STRP 14CIRC 0.375"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 10.46
		10	$ 9.21
		25	$ 8.68
		50	$ 8.27
		100	$ 8.11
		250	$ 7.06
		500	$ 6.80
		1000	$ 6.54

Description

General part information

T37120 Series

14 Circuit 0.375" (9.53mm) Barrier Block Connector Screws

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	T37120-14-0	T37120 Series

Barrier Type	3 Wall (Tri)	3 Wall (Tri)
Bottom Termination	Solder Turret	Solder Turret
Current Rating (Amps)	20 A	20 A
Material - Insulation	Polypropylene (PP)	Polypropylene (PP)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Chassis, Panel, Through Hole	Chassis, Panel, Through Hole
Number of Circuits	14	1 - 25
Number of Rows	1	1
Number of Wire Entries	14	2 - 25
Number of Wire Entries	-	1 - 23
Operating Temperature	105 C	105 C
Pitch [x]	9.53 mm	9.53 mm
Pitch [x]	0.375 in	0.375 in
Terminal Block Type	Barrier Block	Barrier Block
Terminal Screw Finish	Nickel	Nickel
Terminal Screw Material	Steel	Steel
Top Termination	Screws	Screws
Voltage Rating	300 VDC	300 VDC
Wire Gauge [Max]	22 AWG	22 AWG
Wire Gauge [Min]	12 AWG	12 AWG

T37120 Series

CONN BARRIER STRIP 5CIRC 0.375"

Part	Operating Temperature	Wire Gauge [Min]	Wire Gauge [Max]	Number of Rows	Mounting Type	Top Termination	Terminal Screw Finish	Pitch [x]	Pitch [x]	Bottom Termination	Terminal Block Type	Number of Wire Entries	Voltage Rating	Barrier Type	Material - Insulation	Current Rating (Amps)	Terminal Screw Material	Number of Circuits	Material Flammability Rating	Number of Wire Entries [custom]
Curtis Industries T37120-05-0	105 C	12 AWG	22 AWG	1	Chassis, Panel, Through Hole	Screws	Nickel	9.53 mm	0.375 in	Solder Turret	Barrier Block	5	300 VDC	3 Wall (Tri)	Polypropylene (PP)	20 A	Steel	5	UL94 V-0
Curtis Industries T37120-11-0	105 C	12 AWG	22 AWG	1	Chassis, Panel, Through Hole	Screws	Nickel	9.53 mm	0.375 in	Solder Turret	Barrier Block	11	300 VDC	3 Wall (Tri)	Polypropylene (PP)	20 A	Steel	11	UL94 V-0
Curtis Industries T37120-21-0	105 C	12 AWG	22 AWG	1	Chassis, Panel, Through Hole	Screws	Nickel	9.53 mm	0.375 in	Solder Turret	Barrier Block	21	300 VDC	3 Wall (Tri)	Polypropylene (PP)	20 A	Steel	21	UL94 V-0
Curtis Industries T37120-14-0	105 C	12 AWG	22 AWG	1	Chassis, Panel, Through Hole	Screws	Nickel	9.53 mm	0.375 in	Solder Turret	Barrier Block	14	300 VDC	3 Wall (Tri)	Polypropylene (PP)	20 A	Steel	14	UL94 V-0
Curtis Industries T37120-03-0	105 C	12 AWG	22 AWG	1	Chassis, Panel, Through Hole	Screws	Nickel	9.53 mm	0.375 in	Solder Turret	Barrier Block	3	300 VDC	3 Wall (Tri)	Polypropylene (PP)	20 A	Steel	3	UL94 V-0
Curtis Industries T37120-25-0	105 C	12 AWG	22 AWG	1	Chassis, Panel, Through Hole	Screws	Nickel	9.53 mm	0.375 in	Solder Turret	Barrier Block	25	300 VDC	3 Wall (Tri)	Polypropylene (PP)	20 A	Steel	25	UL94 V-0
Curtis Industries T37120-24-0	105 C	12 AWG	22 AWG	1	Chassis, Panel, Through Hole	Screws	Nickel	9.53 mm	0.375 in	Solder Turret	Barrier Block		300 VDC	3 Wall (Tri)	Polypropylene (PP)	20 A	Steel	24	UL94 V-0
Curtis Industries T37120-20-0	105 C	12 AWG	22 AWG	1	Chassis, Panel, Through Hole	Screws	Nickel	9.53 mm	0.375 in	Solder Turret	Barrier Block	20	300 VDC	3 Wall (Tri)	Polypropylene (PP)	20 A	Steel	20	UL94 V-0
Curtis Industries T37120-06-0	105 C	12 AWG	22 AWG	1	Chassis, Panel, Through Hole	Screws	Nickel	9.53 mm	0.375 in	Solder Turret	Barrier Block	6	300 VDC	3 Wall (Tri)	Polypropylene (PP)	20 A	Steel	6	UL94 V-0
Curtis Industries T37120-23-0	105 C	12 AWG	22 AWG	1	Chassis, Panel, Through Hole	Screws	Nickel	9.53 mm	0.375 in	Solder Turret	Barrier Block		300 VDC	3 Wall (Tri)	Polypropylene (PP)	20 A	Steel	23	UL94 V-0	23
