ANM-W-15A-16R

Active

OptiFuse

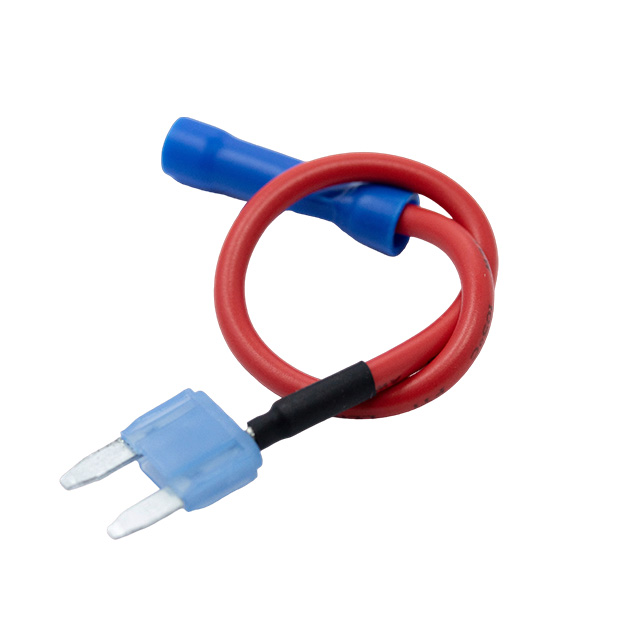

FUSE AUTO 15A 32VDC BLADE MINI

Search across all available documentation for this part.

Active

OptiFuse

FUSE AUTO 15A 32VDC BLADE MINI

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.93

General part information

15 A AC 32 V DC Fuse Automotive Requires Holder Blade, Miniature

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	ANM-W-15A-16R	ANM-W Series

Breaking Capacity @ Rated Voltage	1 kA	1 kA
Color	Blue	Yellow, Blue, Red
Current Rating (Amps)	15 A	10 - 20 A
Fuse Type	Automotive	Automotive
Mounting Type	Requires Holder	Requires Holder
Package / Case	Blade, Miniature	Blade, Miniature
Response Time	Fast Blow	Fast Blow
Size / Dimension [x]	0.429 "	0.429 "
Size / Dimension [x]	10.9 mm	10.9 mm
Size / Dimension [y]	0.15 "	0.15 "
Size / Dimension [y]	3.8 mm	3.8 mm
Size / Dimension [z]	9.2 mm	9.2 mm
Size / Dimension [z]	0.362 in	0.362 in
Voltage Rating - DC	32 V	32 V

FUSE AUTO 20A 32VDC BLADE MINI

Part	Package / Case	Color	Voltage Rating - DC	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Response Time	Breaking Capacity @ Rated Voltage	Fuse Type	Current Rating (Amps)	Mounting Type
OptiFuse ANM-W-20A-16R	Blade, Miniature	Yellow	32 V	9.2 mm	0.15 "	0.362 in	3.8 mm	0.429 "	10.9 mm	Fast Blow	1 kA	Automotive	20 A	Requires Holder
OptiFuse ANM-W-15A-16R	Blade, Miniature	Blue	32 V	9.2 mm	0.15 "	0.362 in	3.8 mm	0.429 "	10.9 mm	Fast Blow	1 kA	Automotive	15 A	Requires Holder
OptiFuse ANM-W-20A-18R	Blade, Miniature	Yellow	32 V	9.2 mm	0.15 "	0.362 in	3.8 mm	0.429 "	10.9 mm	Fast Blow	1 kA	Automotive	20 A	Requires Holder
OptiFuse ANM-W-10A-18R	Blade, Miniature	Red	32 V	9.2 mm	0.15 "	0.362 in	3.8 mm	0.429 "	10.9 mm	Fast Blow	1 kA	Automotive	10 A	Requires Holder
OptiFuse ANM-W-15A-18R	Blade, Miniature	Blue	32 V	9.2 mm	0.15 "	0.362 in	3.8 mm	0.429 "	10.9 mm	Fast Blow	1 kA	Automotive	15 A	Requires Holder
OptiFuse ANM-W-10A-16R	Blade, Miniature	Red	32 V	9.2 mm	0.15 "	0.362 in	3.8 mm	0.429 "	10.9 mm	Fast Blow	1 kA	Automotive	10 A	Requires Holder
