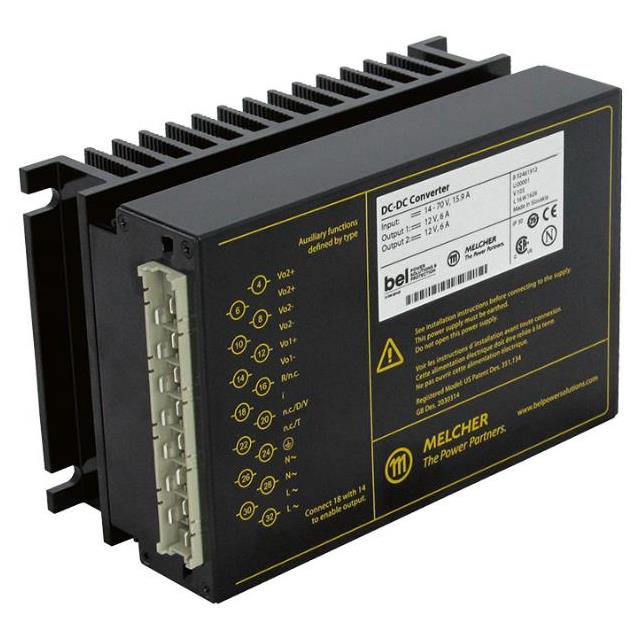

LK1301-9ERG

Active

Bel Power Solutions

AC/DC CONVERTER 12V 144W

Search across all available documentation for this part.

Active

Bel Power Solutions

AC/DC CONVERTER 12V 144W

Technical Specifications

Parameters and characteristics for this part

AC/DC CONVERTER 12V 144W

Part	Voltage - Input [Min]	Voltage - Input [Max]	Approval Agency	Current - Output 1	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Applications	Efficiency	Voltage - Isolation	Voltage - Output 1	Type	Mounting Type	Number of Outputs	Power (Watts)	Features	Operating Temperature [Min]	Operating Temperature [Max]
Bel Power Solutions LK1301-9ERG	88 VDC, 100 VAC	240 VAC, 372 VDC	cCSAus, CE, NEMKO	12 A	168 mm	111 mm	3.2 in	80 mm	6.6 "	4.4 "	ITE (Commercial), Railway	83 %	2000 V	12 V	Conformal Coated, Enclosed	Chassis Mount	1	144 W	Universal Input	-40 °C	71 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Enclosed, Conformal Coated AC DC Converters 1 Output 12V 100 ~ 240 VAC, 88 ~ 372 VDC Input

Technical documentation and resources

No documents available
