581-3/8X16-B
ActiveJ.W. Winco

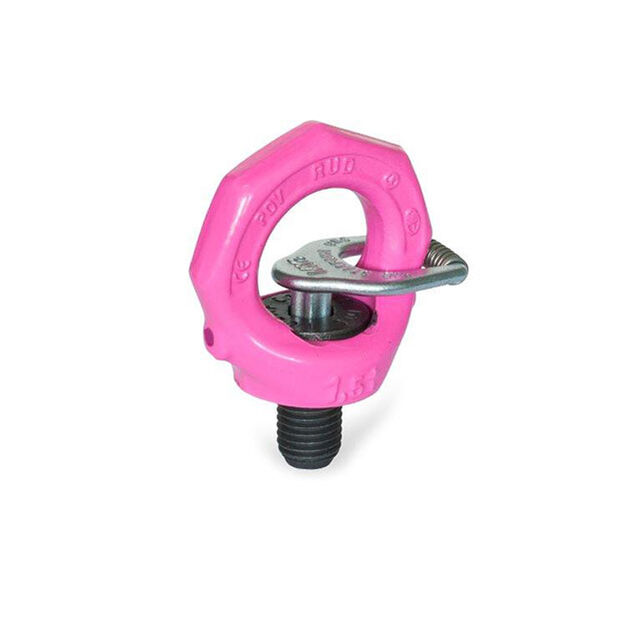

SAFETY SWIVEL LIFTING EYE BOLT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet

581-3/8X16-B
ActiveJ.W. Winco
SAFETY SWIVEL LIFTING EYE BOLT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 581-3/8X16-B |
|---|---|
| Features | Colored Head |
| Head Diameter [diameter] | 1.85 " |
| Head Diameter [diameter] | 46.99 mm |
| Head Height | 1.81 in |
| Head Height | 45.97 mm |
| Length - Below Head [x] | 0.59 in |
| Length - Below Head [x] | 14.99 mm |
| Length - Overall [x] | 2.4 in |
| Length - Overall [x] | 60.96 mm |
| Thread Size | 3/8"-16 |
| Type | Bolt |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 103.58 | |
Description
General part information
581-3/8 Series
3/8"-16 Spade Head Bolt Drive Steel
