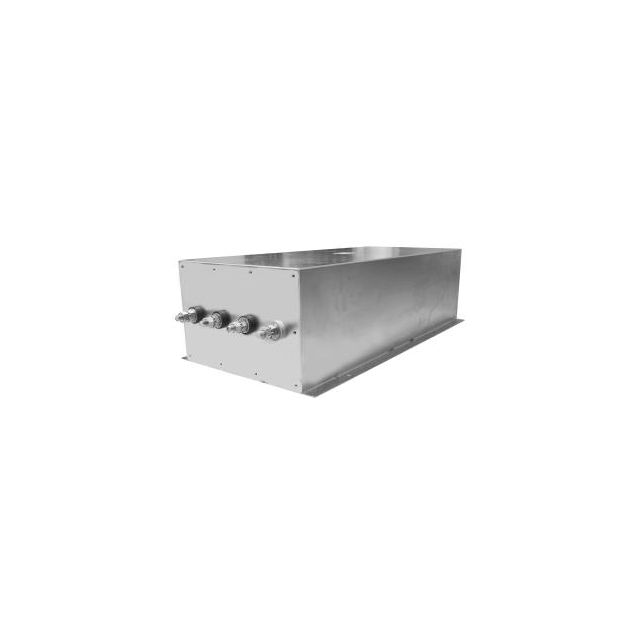

RPTC2004-100
ActiveAstrodyne TDI
LINE FILTER 480VAC 100A CHASSIS
RPTC2004-100
ActiveAstrodyne TDI
LINE FILTER 480VAC 100A CHASSIS
Description
General part information
RPTC2004 Series
Three Phase (Wye) EMC/EMI Line Filter 100 A 480V 47/63Hz Three Stage Threaded Post (1/4-20)
Technical Specifications
Parameters and characteristics for this part
| Specification | RPTC2004-100 |
|---|---|
| Configuration | Three Stage |
| Current | 100 A |
| Filter Subtype | Wye |
| Filter Type | Three Phase |
| Frequency - Operating | 47Hz, 63Hz |
| Frequency - Operating (Max) | 63 Hz |
| Frequency - Operating (Min) | 47 Hz |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 100 °C |
| Operating Temperature (Min) | -40 °C |
| Termination Style | Threaded Post (1/4-20) |
| Voltage - Rated AC | 480 V |
| Voltage - Rated AC (Phase to Ground/Neutral) | 1.5 kV |
