Q-2P01A0005003M

Active

Amphenol Custom Cable

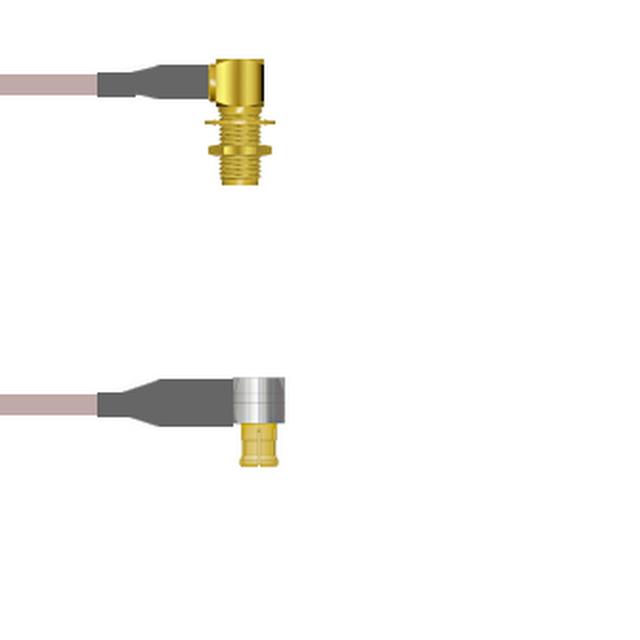

CBL ASSY SMA-MCX JACK-PLUG 9.8'

Deep-Dive with AI

Search across all available documentation for this part.

Q-2P01A0005003M

Active

Amphenol Custom Cable

CBL ASSY SMA-MCX JACK-PLUG 9.8'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2P01A0005003M

1st Connector	SMA Jack, Right Angle
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	MCX Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Impedance	50 Ohms
Cable Type	RG-316
Color	Copper
Connector Impedance	50 Ohms
Features	Shielded
Frequency - Max [Max]	3 GHz
Length	3 m
Length	118.1 in
Length	9.8 '
Overall Impedance	50 Ohms
Style	SMA to MCX

Q-2P01A0 Series

Part	Length	Length	Overall Impedance	2nd Contact Gender	Cable Type	2nd Connector Mounting Type	Cable Impedance	Frequency - Max [Max]	1st Connector	1st Contact Gender	Color	1st Connector Mounting Feature	Connector Impedance	Style	1st Connector Mounting Type	2nd Connector	Features	Length	Length [x]	Length [x]
Amphenol Custom Cable Q-2P01A0005009I	9 "	228.6 mm	50 Ohms	Male	RG-316	Free Hanging (In-Line)	50 Ohms	3 GHz	Right Angle SMA Jack	Female	Copper	Bulkhead - Front Side Nut	50 Ohms	SMA to MCX	Panel Mount	MCX Plug Right Angle	Shielded
Amphenol Custom Cable Q-2P01A0005003M	118.1 in	3 m	50 Ohms	Male	RG-316	Free Hanging (In-Line)	50 Ohms	3 GHz	Right Angle SMA Jack	Female	Copper	Bulkhead - Front Side Nut	50 Ohms	SMA to MCX	Panel Mount	MCX Plug Right Angle	Shielded	9.8 '
Amphenol Custom Cable Q-2P01A0005.25M			50 Ohms	Male	RG-316	Free Hanging (In-Line)	50 Ohms	3 GHz	Right Angle SMA Jack	Female	Copper	Bulkhead - Front Side Nut	50 Ohms	SMA to MCX	Panel Mount	MCX Plug Right Angle	Shielded		9.843 "	250 mm
Amphenol Custom Cable Q-2P01A0003006I	6 in	152.4 mm	50 Ohms	Male	RG-174	Free Hanging (In-Line)	50 Ohms	1 GHz	Right Angle SMA Jack	Female	Black	Bulkhead - Front Side Nut	50 Ohms	SMA to MCX	Panel Mount	MCX Plug Right Angle	Shielded
Amphenol Custom Cable Q-2P01A0003012I	12 "	304.8 mm	50 Ohms	Male	RG-174	Free Hanging (In-Line)	50 Ohms	1 GHz	Right Angle SMA Jack	Female	Black	Bulkhead - Front Side Nut	50 Ohms	SMA to MCX	Panel Mount	MCX Plug Right Angle	Shielded
Amphenol Custom Cable Q-2P01A0005001M	39.4 in	1 m	50 Ohms	Male	RG-316	Free Hanging (In-Line)	50 Ohms	3 GHz	Right Angle SMA Jack	Female	Copper	Bulkhead - Front Side Nut	50 Ohms	SMA to MCX	Panel Mount	MCX Plug Right Angle	Shielded	3.3 ft
Amphenol Custom Cable Q-2P01A0003108I	108 in	2.7 m	50 Ohms	Male	RG-174	Free Hanging (In-Line)	50 Ohms	1 GHz	Right Angle SMA Jack	Female	Black	Bulkhead - Front Side Nut	50 Ohms	SMA to MCX	Panel Mount	MCX Plug Right Angle	Shielded	9 ft
Amphenol Custom Cable Q-2P01A00031.5M	59.1 in	1.5 m	50 Ohms	Male	RG-174	Free Hanging (In-Line)	50 Ohms	1 GHz	Right Angle SMA Jack	Female	Black	Bulkhead - Front Side Nut	50 Ohms	SMA to MCX	Panel Mount	MCX Plug Right Angle	Shielded	4.9 ft
Amphenol Custom Cable Q-2P01A0003072I	72 in	1.8 m	50 Ohms	Male	RG-174	Free Hanging (In-Line)	50 Ohms	1 GHz	Right Angle SMA Jack	Female	Black	Bulkhead - Front Side Nut	50 Ohms	SMA to MCX	Panel Mount	MCX Plug Right Angle	Shielded	6 ft
Amphenol Custom Cable Q-2P01A0005072I	72 in	1.8 m	50 Ohms	Male	RG-316	Free Hanging (In-Line)	50 Ohms	3 GHz	Right Angle SMA Jack	Female	Copper	Bulkhead - Front Side Nut	50 Ohms	SMA to MCX	Panel Mount	MCX Plug Right Angle	Shielded	6 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 112.44
		25	$ 104.68
		50	$ 96.92
		100	$ 90.27
		250	$ 84.73

Description

General part information

Q-2P01A0 Series

Cable Assembly Coaxial SMA to MCX RG-316 118.1" (3.0m) 9.8'
