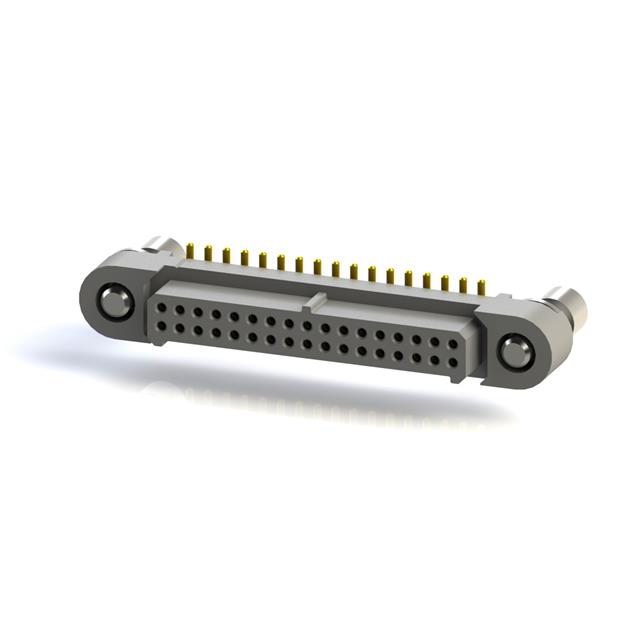

Specification	A222T34V16

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	5.9 µin
Contact Finish Thickness - Post	5.9 µin
Contact Material	Copper Alloy
Contact Shape	Circular
Contact Type	Female Socket
Current Rating	2.5 A
Fastening Type	Push-Pull
Features	Mating Flange, Polarizing Key, Jackscrews, Mounting Flange
Insulation Color	Black
Insulation Height	0.157 in
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	34
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature (Max)	200 °C
Operating Temperature (Min)	-65 °C
Pitch - Mating	0.039 in
Row Spacing - Mating	0.039 in
Style	Board
Termination	Solder
Voltage Rating	600 V

A222T34V Series

Part	Number of Positions Loaded	Insulation Color	Row Spacing - Mating	Contact Finish - Post	Number of Rows	Voltage Rating	Mounting Type	Pitch - Mating	Termination	Contact Finish - Mating	Contact Finish Thickness - Mating	Operating Temperature (Max)	Operating Temperature (Min)	Material Flammability Rating	Contact Type	Features	Style	Fastening Type	Connector Type	Number of Positions	Insulation Height	Current Rating	Contact Material	Contact Finish Thickness - Post	Insulation Material	Contact Shape
Nicomatic A222T34V16	All	Black	0.039 in	Gold	2	600 V	Surface Mount	0.039 in	Solder	Gold	5.9 µin	200 °C	-65 °C	UL94 V-0	Female Socket	Jackscrews Mating Flange Mounting Flange Polarizing Key	Board	Push-Pull	Receptacle	34	0.157 in	2.5 A	Copper Alloy	5.9 µin	Liquid Crystal Polymer (LCP)	Circular
