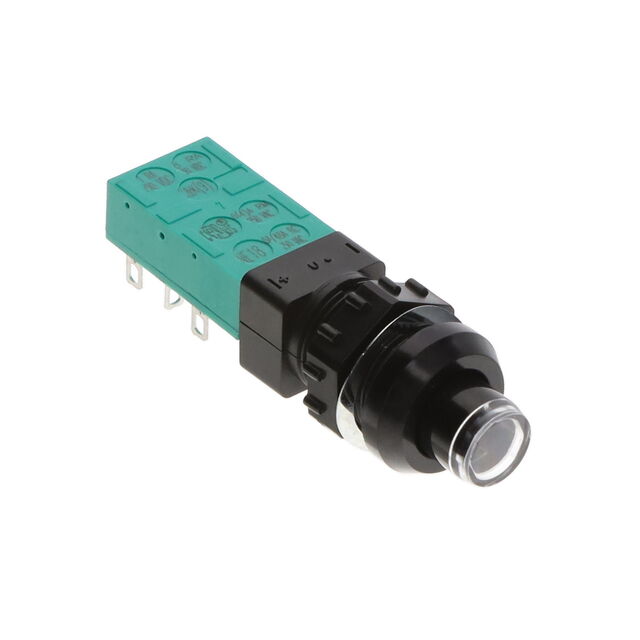

ZNE18 FA200 BK OG 2U EE L

Active

LITTELFUSE

SWITCH PUSHBUTTON DPDT 6A 250V

Search across all available documentation for this part.

Active

LITTELFUSE

SWITCH PUSHBUTTON DPDT 6A 250V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ZNE18 FA200 BK OG 2U EE L	ZNE18 Series

	-	-
Actuator Marking	No Marking	No Marking
Actuator Type	Round, Button	Round, Button
Circuit	DPDT	DPDT
Color - Actuator/Cap	Orange	Orange, Green
Current Rating (Amps)	6 A	6 A
Electrical Life	10000 Cycles	10000 Cycles
Ingress Protection	Dust Proof	Dust Proof
Mounting Type	Panel Mount, Right Angle, Rear	Panel Mount, Right Angle, Rear
Panel Cutout Dimensions [diameter]	14 mm	14 mm
Switch Function	On-On	On-On
Termination Style	PC Pin	PC Pin
Type	Standard	Standard
Voltage Rating - AC	250 V	250 V
Voltage Rating - DC	100 V	100 V

SWITCH PUSHBUTTON DPDT 6A 250V

Part	Voltage Rating - AC	Actuator Marking	Termination Style	Current Rating (Amps)	Actuator Type	Mounting Type	Color - Actuator/Cap	Circuit	Switch Function	Voltage Rating - DC	Electrical Life	Type	Ingress Protection	Panel Cutout Dimensions [diameter]
LITTELFUSE ZNE18 FA200 BK OG 2U EE L	250 V	No Marking	PC Pin	6 A	Button, Round	Panel Mount, Rear, Right Angle	Orange	DPDT	On-On	100 V	10000 Cycles	Standard	Dust Proof	14 mm
LITTELFUSE ZNE18 FA200 BK GN 2A 2U EE
LITTELFUSE ZNE18FA200BKGN2U2UEEL
LITTELFUSE ZNE18FA200BKGN2U2UEE
LITTELFUSE ZNE18 FA200 BK GN 2U EE	250 V	No Marking	PC Pin	6 A	Button, Round	Panel Mount, Rear, Right Angle	Green	DPDT	On-On	100 V	10000 Cycles	Standard	Dust Proof	14 mm
LITTELFUSE ZNE18FA200BKGN2U2UEEP
LITTELFUSE ZNE18 FA200 BK GN 2U EE L	250 V	No Marking	PC Pin	6 A	Button, Round	Panel Mount, Rear, Right Angle	Green	DPDT	On-On	100 V	10000 Cycles	Standard	Dust Proof	14 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch DPDT Standard Panel Mount, Right Angle, Rear
