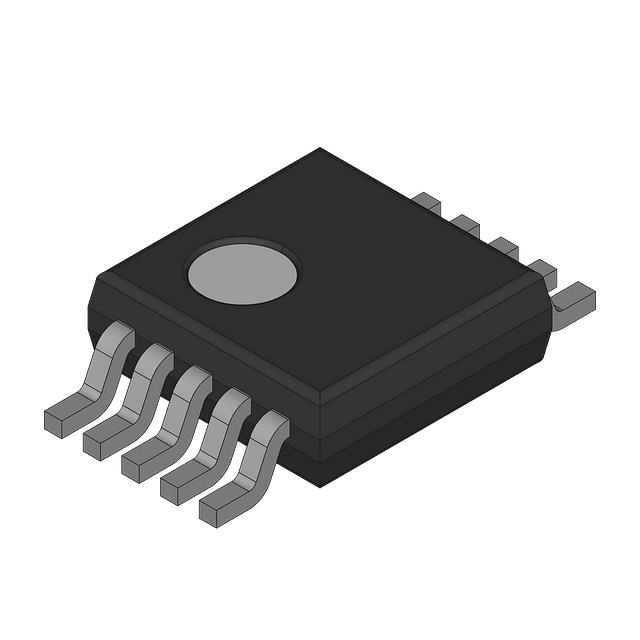

LM25011MYX/NOPB
ActiveNational Semiconductor
IC REG BUCK ADJ 2A 10HVSSOP
Deep-Dive with AI
Search across all available documentation for this part.
LM25011MYX/NOPB
ActiveNational Semiconductor
IC REG BUCK ADJ 2A 10HVSSOP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LM25011MYX/NOPB |
|---|---|
| Current - Output | 2 A |
| Frequency - Switching [Max] | 2 MHz |
| Function | Step-Down |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 125 ¯C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Package / Case | 10-PowerTFSOP, 10-MSOP |
| Package / Case | 3 mm, 0.118 in |
| Supplier Device Package | 10-HVSSOP |
| Synchronous Rectifier | False |
| Topology | Buck |
| Voltage - Input (Max) [Max] | 42 V |
| Voltage - Input (Min) [Min] | 6 V |
| Voltage - Output (Max) [Max] | 40 V |
| Voltage - Output (Min/Fixed) | 2.51 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 199 | $ 1.51 | |
| Cut Tape (CT) | 1 | $ 2.74 | ||
| 10 | $ 2.04 | |||
| 25 | $ 1.87 | |||
| 100 | $ 1.68 | |||
| 250 | $ 1.59 | |||
| 500 | $ 1.53 | |||
| 1000 | $ 1.49 | |||
| Digi-Reel® | 1 | $ 2.74 | ||
| 10 | $ 2.04 | |||
| 25 | $ 1.87 | |||
| 100 | $ 1.68 | |||
| 250 | $ 1.59 | |||
| 500 | $ 1.53 | |||
| 1000 | $ 1.49 | |||
| Tape & Reel (TR) | 3500 | $ 1.42 | ||
| 7000 | $ 1.40 | |||
Description
General part information
LM25011 Series
Buck Switching Regulator IC Positive Adjustable 2.51V 1 Output 2A 10-PowerTFSOP, 10-MSOP (0.118", 3.00mm Width)
Documents
Technical documentation and resources
No documents available
