5240F1 0101000

Active

Belden Inc.

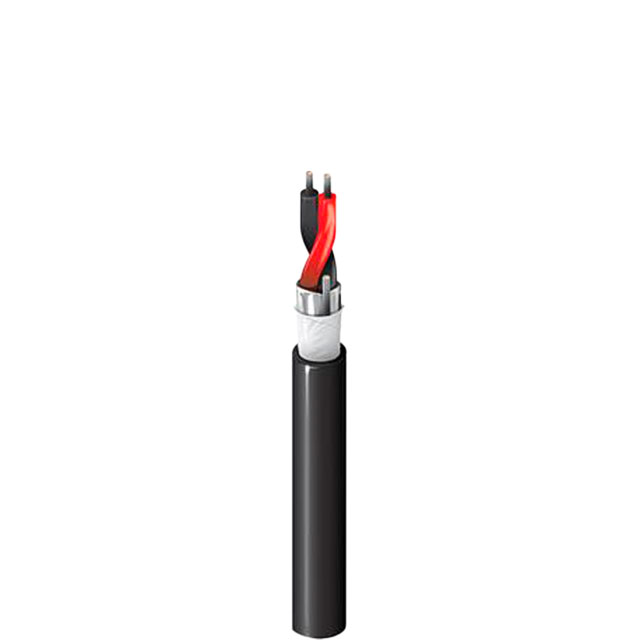

CABLE 2COND 16AWG BLK SHLD

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 2COND 16AWG BLK SHLD

Technical Specifications

Parameters and characteristics for this part

Specification	5240F1 0101000

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	24
Features	Ripcord, Drain Wire, Water-Blocked, UV Resistant, Direct Burial
Jacket (Insulation) Diameter [diameter]	6.45 mm
Jacket (Insulation) Diameter [diameter]	0.254 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.94 mm
Jacket (Insulation) Thickness	0.037 in
Jacket Color	Black
Length	1000 ft
Length	304.8 m
Number of Conductors	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-30 ░C
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Sound, Security
Voltage	300 V
Wire Gauge	16 AWG

Part	Conductor Material	Jacket Color	Jacket (Insulation) Material	Shield Type	Number of Conductors	Usage	Shield Coverage	Wire Gauge	Features	Shield Material	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Insulation	Cable Type	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Length	Length	Operating Temperature [Min]	Operating Temperature [Max]	Voltage
Belden Inc. 5240F1 0101000	Copper Tinned	Black	Poly-Vinyl Chloride (PVC)	Foil	2	Security Sound	100 %	16 AWG	Direct Burial Drain Wire Ripcord UV Resistant Water-Blocked	Aluminum	7	24	0.94 mm	0.037 in	Poly-Vinyl Chloride (PVC)	Multi-Conductor	6.45 mm	0.254 in	1000 ft	304.8 m	-30 ░C	105 ░C	300 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 0.58

General part information

2 (1 Pair) Conductor Multi-Conductor Cable Black 16 AWG Foil 1000.0' (304.8m)
