CONREVMCX012-R178

Obsolete

TE Connectivity Linx

CONN RPMCX PLUG R/A 50OHM SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

CONREVMCX012-R178

Obsolete

TE Connectivity Linx

CONN RPMCX PLUG R/A 50OHM SOLDER

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CONREVMCX012-R178

Body Finish	Gold
Body Material	Brass
Cable Group	RG-178
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	RP-MCX
Connector Type	Plug, Female Socket
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Push-Pull
Frequency - Max [Max]	6000 MHz
Housing Color	Gold
Impedance	50 Ohms

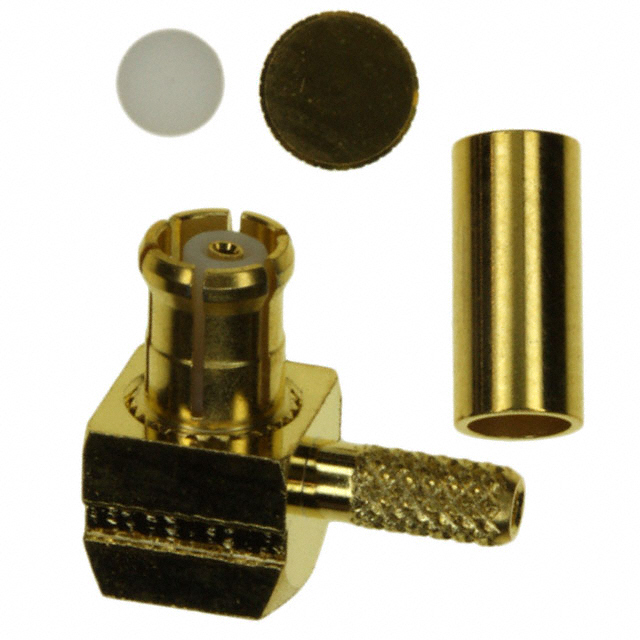

Includes	1 End Cap, 1 Connector, 1 Ferrule, 1 Insulator, 1 Heat Shrink
Insertion Loss	0.2 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	250 VDC

CONREVMCX Series

Part	Shield Termination	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Body Finish	Impedance	Connector Style	Insertion Loss	Center Contact Plating	Center Contact Material	Frequency - Max [Max]	Contact Termination	Number of Ports	Housing Color	Mounting Feature	Mounting Type	Mating Cycles	Includes	Dielectric Material	Body Material	Fastening Type	Cable Group	Voltage Rating
TE Connectivity Linx CONREVMCX002-L	Solder	Male Pin Receptacle	-65 ░C	165 °C	Gold	50 Ohms	RP-MCX	0.2 dB	Gold	Phosphor Bronze	6000 MHz	Solder	1	Gold	Bulkhead - Front Side Nut	Panel Mount Right Angle Through Hole	500	1 Connector 1 Lockwasher 1 Nut	Polytetrafluoroethylene (PTFE)	Brass
TE Connectivity Linx CONREVMCX007	Crimp	Female Socket Plug	-65 ░C	165 °C	Nickel	50 Ohms	RP-MCX	0.1 dB	Gold	Beryllium Copper	6000 MHz	Solder	1	Silver		Free Hanging (In-Line)	500		Polytetrafluoroethylene (PTFE)	Brass	Push-Pull	RG-174
TE Connectivity Linx CONREVMCX003.062	Solder	Male Pin Receptacle	-65 ░C	165 °C	Gold	50 Ohms	RP-MCX	0.1 dB	Gold	Phosphor Bronze	6000 MHz	Solder	1	Gold		Board Edge End Launch	500		Polytetrafluoroethylene (PTFE)	Brass	Push-Pull
TE Connectivity Linx CONREVMCX001	Solder	Male Pin Receptacle	-65 ░C	165 °C	Gold	50 Ohms	RP-MCX	0.1 dB	Gold	Brass	6000 MHz	Solder	1	Gold		Through Hole	500		Polytetrafluoroethylene (PTFE)	Brass	Push-Pull
TE Connectivity Linx CONREVMCX002-SMD	Solder	Male Pin Receptacle	-65 ░C	165 °C	Gold	50 Ohms	RP-MCX	0.1 dB	Gold	Beryllium Copper	6000 MHz	Solder	1	Gold		Surface Mount Right Angle	500		Polytetrafluoroethylene (PTFE)	Brass	Push-Pull
TE Connectivity Linx CONREVMCX005	Crimp	Male Pin Receptacle	-65 ░C	165 °C	Gold	50 Ohms	RP-MCX	0.1 dB	Gold	Phosphor Bronze	6000 MHz	Solder	1	Gold	Bulkhead - Front Side Nut		500	1 Connector 1 Contact 1 Ferrule 1 Heat Shrink 1 Lockwasher 1 Nut	Polytetrafluoroethylene (PTFE)	Brass		RG-174
TE Connectivity Linx CONREVMCX011	Crimp	Male Pin Receptacle	-65 ░C	165 °C	Gold	50 Ohms	RP-MCX	0.1 dB	Gold	Phosphor Bronze	6000 MHz	Solder	1	Gold		Free Hanging (In-Line)	500		Polytetrafluoroethylene (PTFE)	Brass	Push-Pull	RG-174
TE Connectivity Linx CONREVMCX012	Crimp	Female Socket Plug	-65 ░C	165 °C	Gold	50 Ohms	RP-MCX	0.2 dB	Gold	Beryllium Copper	6000 MHz	Solder	1	Gold		Free Hanging (In-Line) Right Angle	500	1 Connector 1 End Cap 1 Ferrule 1 Heat Shrink 1 Insulator	Polytetrafluoroethylene (PTFE)	Brass	Push-Pull	RG-174
TE Connectivity Linx CONREVMCX007-R178	Crimp	Female Socket Plug	-65 ░C	165 °C	Gold	50 Ohms	RP-MCX	0.1 dB	Gold	Beryllium Copper	6000 MHz	Crimp Solder	1	Gold		Free Hanging (In-Line)	500	1 Connector 1 Contact 1 Heat Shrink 1 Spacer 1 Support	Polytetrafluoroethylene (PTFE)	Brass	Push-Pull	RG-178	250 VDC
TE Connectivity Linx CONREVMCX012-R178	Crimp	Female Socket Plug	-65 ░C	165 °C	Gold	50 Ohms	RP-MCX	0.2 dB	Gold	Beryllium Copper	6000 MHz	Solder	1	Gold		Free Hanging (In-Line) Right Angle	500	1 Connector 1 End Cap 1 Ferrule 1 Heat Shrink 1 Insulator	Polytetrafluoroethylene (PTFE)	Brass	Push-Pull	RG-178	250 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

CONREVMCX Series

RP-MCX Connector Plug, Female Socket 50 Ohms Free Hanging (In-Line), Right Angle Solder

Documents

Technical documentation and resources

No documents available
