3P02-1001-DA

Obsolete

3M (TC)

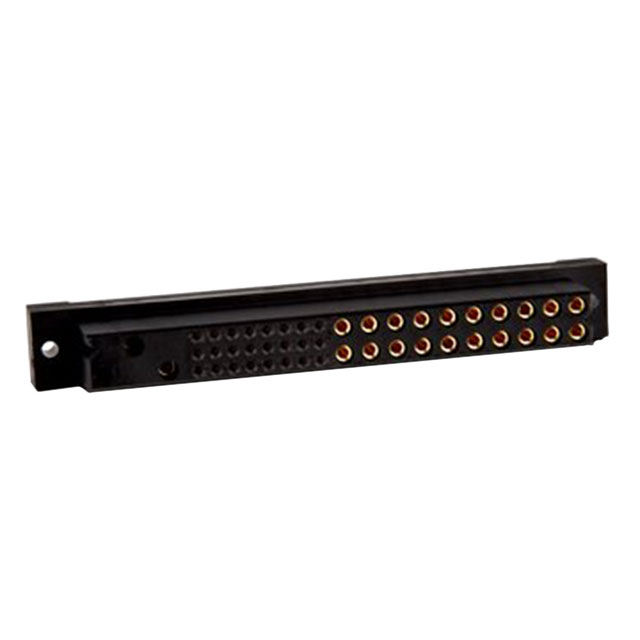

CONN RCPT COMPACT PCI 38POS PCB

Search across all available documentation for this part.

Obsolete

3M (TC)

CONN RCPT COMPACT PCI 38POS PCB

Technical Specifications

Parameters and characteristics for this part

Specification	3P02-1001-DA

Connector Style	CompactPCI®
Connector Type	Receptacle, Female Sockets
Connector Usage	Backplane
Contact Finish	Gold
Contact Finish Thickness	3 Áin
Contact Finish Thickness	0.076 Ám
Contact Layout, Typical [custom]	15
Contact Layout, Typical [custom]	23
Mounting Type	Through Hole
Number of Positions	38
Number of Positions Loaded	All
Termination	Press-Fit

Part	Number of Positions	Contact Layout, Typical [custom]	Contact Layout, Typical [custom]	Mounting Type	Contact Finish	Connector Usage	Contact Finish Thickness	Contact Finish Thickness	Termination	Connector Type	Number of Positions Loaded	Connector Style	Contact Layout, Typical [custom]
3M (TC) 3P02-1002-DA	38	15	23	Through Hole	Gold	Backplane	3 Áin	0.076 Ám	Solder	Receptacle Female Sockets	All	CompactPCI®
3M (TC) 3P02-2002-ES			23	Through Hole	Gold	Backplane	3 Áin	0.076 Ám	Solder	Receptacle Female Sockets	All	CompactPCI®	24
3M (TC) 3P02-1001-DA	38	15	23	Through Hole	Gold	Backplane	3 Áin	0.076 Ám	Press-Fit	Receptacle Female Sockets	All	CompactPCI®
