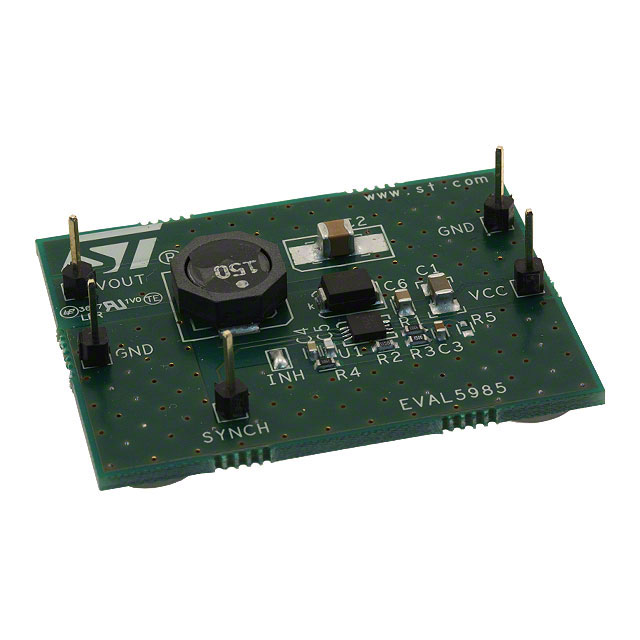

EVAL5985
ObsoleteSTMicroelectronics
BOARD EVAL FOR L5985
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EVAL5985
ObsoleteSTMicroelectronics
BOARD EVAL FOR L5985
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | EVAL5985 |
|---|---|
| Board Type | Fully Populated |
| Current - Output | 2 A |
| Frequency - Switching | 500 kHz |
| Main Purpose | DC/DC, Step Down |
| Outputs and Type | Non-Isolated |
| Outputs and Type | 1 |
| Regulator Topology | Buck |
| Supplied Contents | Board(s) |
| Utilized IC / Part | L5985 |
| Voltage - Input [Max] | 18 V |
| Voltage - Input [Min] | 3.3 V |
| Voltage - Output | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
EVAL5985 Series
L5985 - DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board
Documents
Technical documentation and resources
