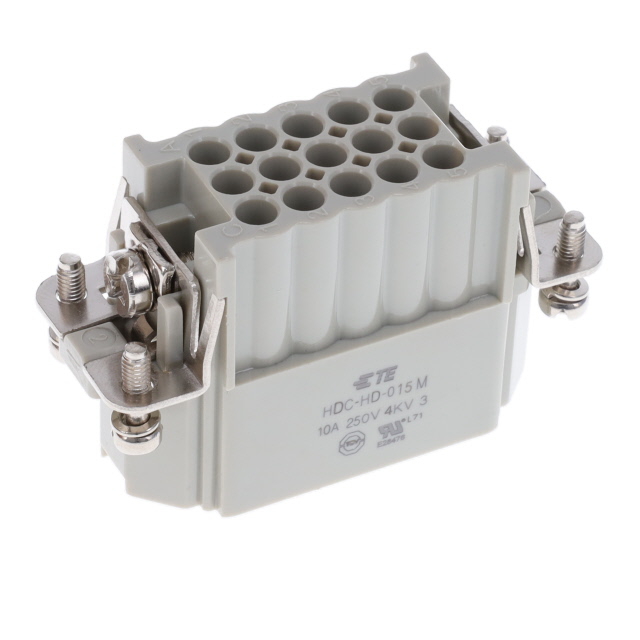

HD-015-M
ActiveTE Connectivity AMP Connectors
INSERT MALE 15POS+1GND CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsHEAVY DUTY CONNECTORS
HD-015-M
ActiveTE Connectivity AMP Connectors
INSERT MALE 15POS+1GND CRIMP
Deep-Dive with AI
DocumentsHEAVY DUTY CONNECTORS
Technical Specifications
Parameters and characteristics for this part
| Specification | HD-015-M |
|---|---|
| Connector Type | Insert without Contacts |
| Contact Type | DDM, CDM |
| Current Rating (Amps) | 10 A |
| Gender | Male |
| Housing Material | Polycarbonate (PC) |
| Material Flammability Rating | UL94 V-0 |
| Number of Positions | 15+Ground |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Size | H10A |
| Termination Style | Crimp |
| Voltage Rating | 250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 6.34 | |
| 10 | $ 5.55 | |||
| 100 | $ 4.97 | |||
| 1000 | $ 4.13 | |||
T2020152101 Series
INSERT MALE 15POS+1GND CRIMP
| Part | Number of Positions | Voltage Rating | Termination Style | Connector Type | Housing Material | Contact Type | Operating Temperature [Max] | Operating Temperature [Min] | Material Flammability Rating | Size | Gender | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors HD-015-M | 15+Ground | 250 VDC | Crimp | Insert without Contacts | Polycarbonate (PC) | CDM, DDM | 125 °C | -40 °C | UL94 V-0 | H10A | Male | 10 A |
Description
General part information
T2020152101 Series
Male Insert without Contacts 15+Ground Position Crimp
