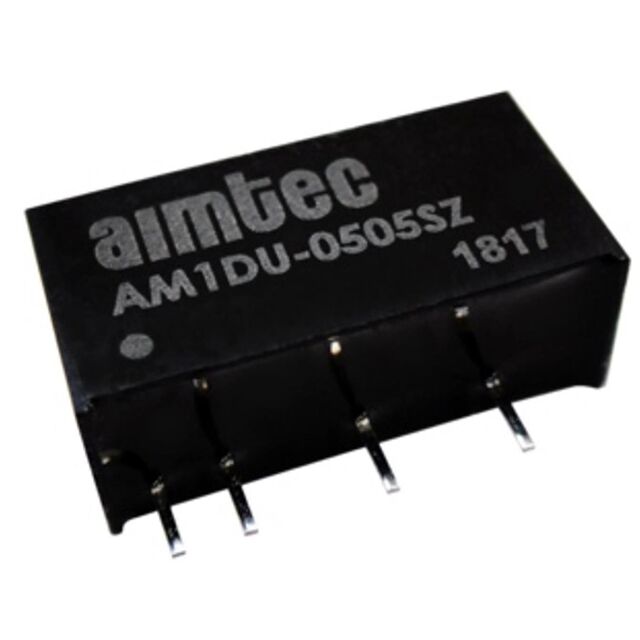

AM1DU-0505SH30Z

Unknown

aimtec

MODULE DC-DC 5VIN 1-OUT 5V 0.2A 1W 4-PIN SIP MODULE

Search across all available documentation for this part.

Unknown

aimtec

MODULE DC-DC 5VIN 1-OUT 5V 0.2A 1W 4-PIN SIP MODULE

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Isolated Module DC DC Converter 1 Output 5V 200mA 4.5V - 9V Input

Technical documentation and resources

Parameters and characteristics commom to parts in this series

DC DC CONVERTER 12V 996MW

Part	Voltage - Input (Max) [Max]	Package / Case	Type	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Input (Min) [Min]	Power (Watts)	Voltage - Isolation	Efficiency	Voltage - Output 1	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output (Max) [Max]	Mounting Type	Number of Outputs	Applications
aimtec AM1DU-2412SH30Z	36 V	7-SIP Module, 4 Leads	Isolated Module	0.39 in	10 mm	0.28 in	19.5 mm	0.77 in	7.2 mm	18 V	996 mW	3000 V	80 %	12 V	-40 °C	90 °C	83 mA	Through Hole	1	ITE (Commercial)
aimtec AM1DU-0512SZ	9 V	7-SIP Module, 4 Leads	Isolated Module	0.39 in	10 mm	0.28 in	19.5 mm	0.77 in	7.2 mm	4.5 V	996 mW	1.5 kV	79 %	12 V	-40 °C	90 °C	83 mA	Through Hole	1	ITE (Commercial)
aimtec AM1DU-0505SH30Z	9 V	7-SIP Module, 4 Leads	Isolated Module	0.39 in	10 mm	0.28 in	19.5 mm	0.77 in	7.2 mm	4.5 V		3000 V	76 %	5 V	-40 °C	90 °C	200 mA	Through Hole	1	ITE (Commercial)
