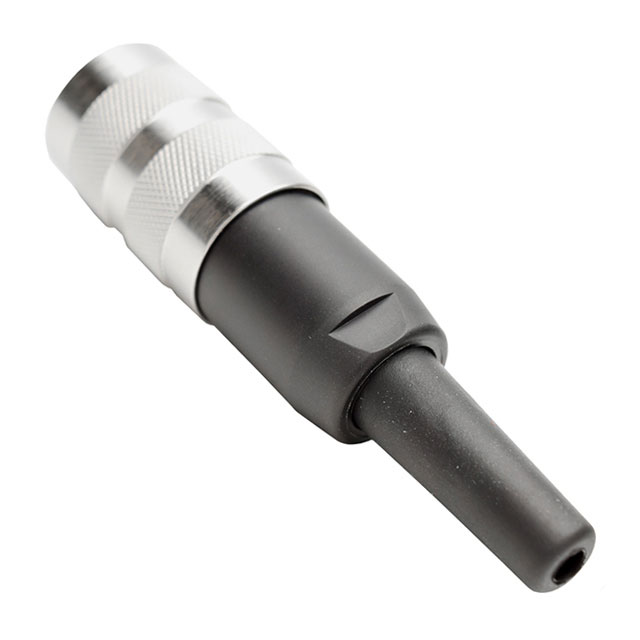

T 3261 551

Active

Amphenol Tuchel Industrial

CONN PLUG HSG FMALE 3POS INLINE

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

CONN PLUG HSG FMALE 3POS INLINE

Technical Specifications

Parameters and characteristics for this part

Specification	T 3261 551

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	1.5 mm
Contact Type	Crimp
Features	Cable Clamp, Strain Relief, Coupling Nut
Housing Color	Silver
Ingress Protection	IP40
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Shell Finish	Nickel
Shell Material	Die Cast
Shell Size - Insert	M16-3
Shielding	Shielded
Type	For Female Sockets

Part	Voltage Rating	Color	Current Rating (Amps)	Shell Finish	Primary Material	Shell Material	Contact Finish - Mating	Connector Type	Ingress Protection	Features	Shielding	Orientation	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Shell Size - Insert	Type	Contact Type	Contact Size	Insert Material	Note	Housing Color	Material Flammability Rating	Contact Shape
Amphenol Tuchel Industrial T 3261 028	250 VDC	Silver	10 A	Nickel	Metal	Die Cast	Gold	Female Sockets Plug	IP40	Cable Clamp Strain Relief	Shielded	Keyed	100 °C	-40 °C	Free Hanging (In-Line)	M16-3
Amphenol Tuchel Industrial T 3261 013	250 VDC	Silver	10 A	Nickel	Metal	Die Cast	Silver	Female Sockets Plug	IP40	Strain Relief	Shielded	Keyed	100 °C	-40 °C	Free Hanging (In-Line)	M16-3
Amphenol Tuchel Industrial T 3261 055				Nickel		Die Cast		Plug Housing	IP40	Cable Clamp Coupling Nut Strain Relief	Shielded	Keyed	100 °C	-40 °C	Free Hanging (In-Line) Right Angle	M16-3	For Female Sockets	Crimp	1.5 mm	Thermoplastic	Contacts Not Included	Silver	UL94 V-0	Circular
Amphenol Tuchel Industrial T 3261 005	250 VDC	Silver	10 A	Nickel	Metal	Die Cast	Silver	Female Sockets Plug	IP40	Strain Relief	Shielded	Keyed	100 °C	-40 °C	Free Hanging (In-Line) Right Angle	M16-3
Amphenol Tuchel Industrial T 3261 551				Nickel		Die Cast		Plug Housing	IP40	Cable Clamp Coupling Nut Strain Relief	Shielded	Keyed	100 °C	-40 °C	Free Hanging (In-Line)	M16-3	For Female Sockets	Crimp	1.5 mm	Thermoplastic	Contacts Not Included	Silver	UL94 V-0	Circular

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Position Circular Connector Plug Housing Free Hanging (In-Line) Cable Clamp, Coupling Nut, Strain Relief
