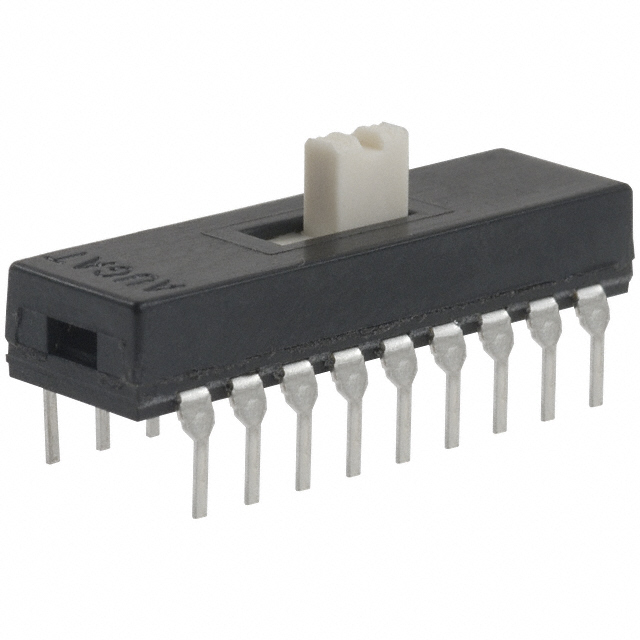

ASE62
ObsoleteTE Connectivity Raychem Cable Protection
SWITCH SLIDE 6PDT 300MA 115V
Deep-Dive with AI
Search across all available documentation for this part.
ASE62
ObsoleteTE Connectivity Raychem Cable Protection
SWITCH SLIDE 6PDT 300MA 115V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ASE62 |
|---|---|
| Actuator Length [x] | 2.79 mm |
| Actuator Material | Polyamide (PA46), Nylon 4/6 |
| Actuator Type | Standard |
| Circuit | 6PDT |
| Contact Finish | Silver |
| Contact Material | Copper Alloy |
| Contact Timing | Shorting |
| Current Rating (Amps) | 300 mA |
| Electrical Life | 15000 Cycles |
| Mechanical Life | 15000 Cycles |
| Mounting Type | Through Hole |
| Operating Force | 950 gf |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -40 °C |
| Switch Function | On-On |
| Switch Travel | 2.79 mm |
| Termination Style | PC Pin |
| Voltage Rating - AC | 115 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
ASE6 Series
Slide Switch 6PDT Through Hole
