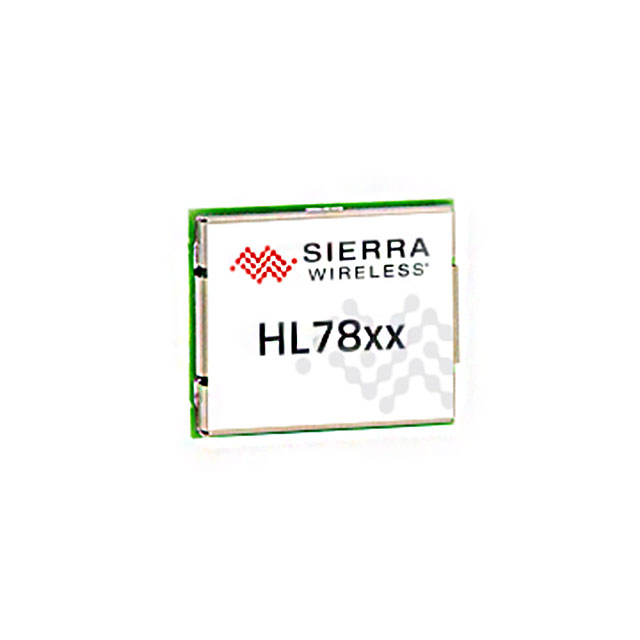

HL7800_1104888

Sierra Wireless

RF TXRX MODULE CELL SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HL7800_1104888

Sierra Wireless

RF TXRX MODULE CELL SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	HL7800_1104888	HL7800 Series

Antenna Type	Antenna Not Included	Antenna Not Included
Data Rate	375 kbps	375 kbps
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	86-LGA Module	86-BFLGA Module, 86-LGA Module
Protocol	LTE	GNSS, LTE
RF Family/Standard	Cellular	Cellular, Navigation
Serial Interfaces	UART, USB	ADC, USB, UART, GPIO
Voltage - Supply	-	4.35 V
Voltage - Supply	-	3.2 V

HL7800 Series

RF TXRX MOD CELL NAV SMD

Part	RF Family/Standard	Package / Case	Serial Interfaces	Mounting Type	Protocol	Antenna Type	Data Rate	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply [Max]	Voltage - Supply [Min]
Sierra Wireless HL7800-M_1104608	Cellular, Navigation	86-BFLGA Module	ADC, GPIO, UART, USB	Surface Mount	GNSS, LTE	Antenna Not Included	375 kbps	85 °C	-40 °C
Sierra Wireless HL7800_1104764	Cellular, Navigation	86-BFLGA Module	ADC, GPIO, UART, USB	Surface Mount	GNSS, LTE	Antenna Not Included	375 kbps	85 °C	-40 °C
Sierra Wireless HL7800_1104888	Cellular	86-LGA Module	UART, USB	Surface Mount	LTE	Antenna Not Included	375 kbps	85 °C	-40 °C
Sierra Wireless HL7800_1104755	Cellular, Navigation	86-BFLGA Module	ADC, GPIO, UART, USB	Surface Mount	GNSS, LTE	Antenna Not Included	375 kbps	85 °C	-40 °C
Sierra Wireless HL7800-M_1104150	Cellular	86-LGA Module	UART, USB	Surface Mount	LTE	Antenna Not Included	375 kbps	85 °C	-40 °C	4.35 V	3.2 V
Sierra Wireless HL7800-M_1104938	Cellular, Navigation	86-BFLGA Module	ADC, GPIO, UART, USB	Surface Mount	GNSS, LTE	Antenna Not Included	375 kbps	85 °C	-40 °C
Sierra Wireless HL7800-M_1104551	Cellular, Navigation	86-BFLGA Module	ADC, GPIO, UART, USB	Surface Mount	GNSS, LTE	Antenna Not Included	375 kbps	85 °C	-40 °C
Sierra Wireless HL7800_1104484	Cellular, Navigation	86-BFLGA Module	ADC, GPIO, UART, USB	Surface Mount	GNSS, LTE	Antenna Not Included	375 kbps	85 °C	-40 °C
Sierra Wireless HL7800_1104526	Cellular, Navigation	86-BFLGA Module	ADC, GPIO, UART, USB	Surface Mount	GNSS, LTE	Antenna Not Included	375 kbps	85 °C	-40 °C
Sierra Wireless HL7800-M_1104799	Cellular, Navigation	86-BFLGA Module	ADC, GPIO, UART, USB	Surface Mount	GNSS, LTE	Antenna Not Included	375 kbps	85 °C	-40 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 33.42
	Digi-Reel®	1	$ 33.42
	Tape & Reel (TR)	100	$ 21.58
		300	$ 20.52
		500	$ 19.10

Description

General part information

HL7800 Series

Cellular LTE Transceiver Module Antenna Not Included Surface Mount

Documents

Technical documentation and resources
