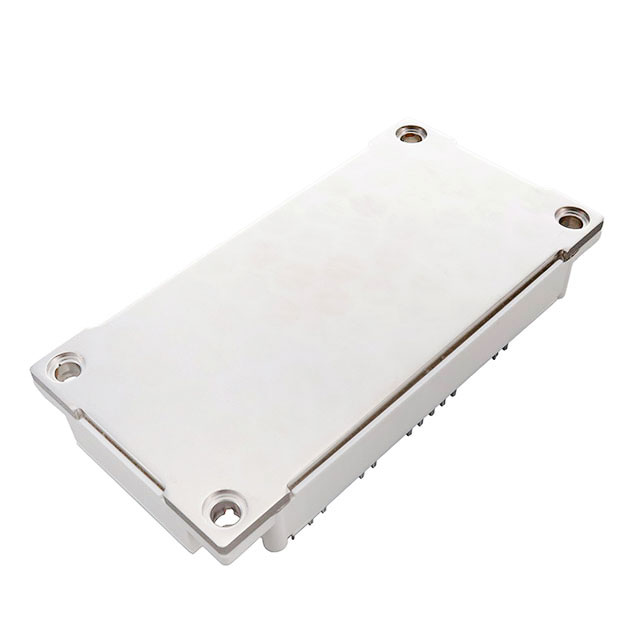

FP100R12N3T7B16BPSA1

Active

Infineon Technologies

LOW POWER ECONO AG-ECONO3B-711

Search across all available documentation for this part.

Active

Infineon Technologies

LOW POWER ECONO AG-ECONO3B-711

Technical Specifications

Parameters and characteristics for this part

Specification	FP100R12N3T7B16BPSA1

Configuration	Three Phase Inverter
Current - Collector (Ic) (Max) [Max]	100 A
IGBT Type	Trench Field Stop
Input	Three Phase Bridge Rectifier
NTC Thermistor	True
Voltage - Collector Emitter Breakdown (Max) [Max]	1200 V

Part	Current - Collector Cutoff (Max) [Max]	Configuration	IGBT Type	Vce(on) (Max) @ Vge, Ic	Power - Max [Max]	Voltage - Collector Emitter Breakdown (Max) [Max]	Current - Collector (Ic) (Max) [Max]	Input	Package / Case	Input Capacitance (Cies) @ Vce	Supplier Device Package	Mounting Type	Current - Collector Cutoff (Max)	Operating Temperature [Min]	Operating Temperature [Max]
Infineon Technologies FP100R12KT4BOSA1	1 mA	Three Phase Inverter	Trench Field Stop	2.2 V	515 W	1200 V	100 A	Standard	Module	6.3 nF	Module	Chassis Mount
Infineon Technologies FP100R12KT4B11BOSA1	1 mA	Three Phase Inverter	Trench Field Stop	2.1 V	515 W	1200 V	100 A	Standard	Module	6.3 nF	Module	Chassis Mount
Infineon Technologies FP100R12N2T7BPSA2		Three Phase Inverter	Trench Field Stop	1.5 V	20 mW	1200 V	100 A	Three Phase Bridge Rectifier	Module	21.7 nF	AG-ECONO2B	Chassis Mount	10 µA	-40 C	175 °C
Infineon Technologies FP100R12KT4PB11BPSA1
Infineon Technologies FP100R12N2T7BPSA1		Three Phase Inverter	Trench Field Stop	1.5 V	20 mW	1200 V	100 A	Three Phase Bridge Rectifier	Module	21.7 nF	AG-ECONO2B	Chassis Mount	10 µA	-40 C	175 °C
Infineon Technologies FP100R12N3T7B16BPSA1		Three Phase Inverter	Trench Field Stop			1200 V	100 A	Three Phase Bridge Rectifier
Infineon Technologies FP100R12W3T7B11BPSA1	1 mA	Three Phase Inverter	Trench Field Stop		20 mW	1200 V	100 A	Three Phase Bridge Rectifier	Module	21.7 nF	AG-EASY3B	Chassis Mount		-40 C	175 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 127.22

General part information

IGBT Module Trench Field Stop Three Phase Inverter 1200 V 100 A
