1511-ST
ActiveCurtis Industries

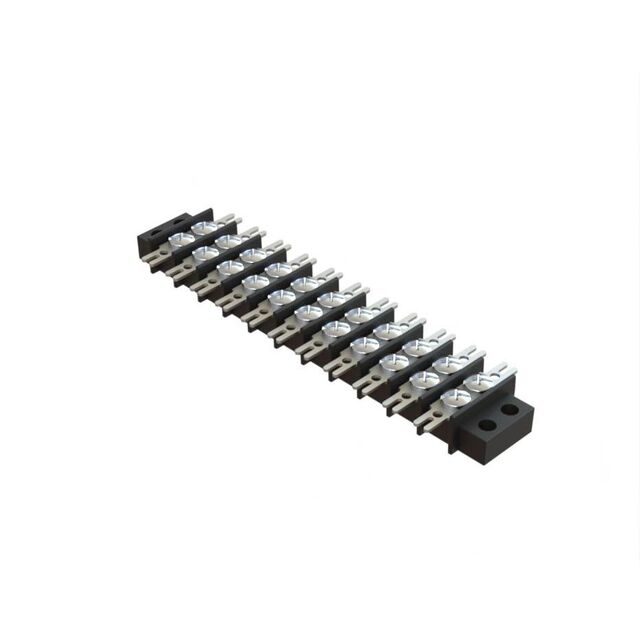

CONN BARRIER STRP 11CIRC 0.375"
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1511-ST
ActiveCurtis Industries
CONN BARRIER STRP 11CIRC 0.375"
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1511-ST | 1511 Series |
|---|---|---|
| Barrier Type | 2 Wall (Dual) | 2 Wall (Dual) |
| Bottom Termination | Closed | Wire Wrap, Closed |
| Current Rating (Amps) | 20 A | 20 A |
| Features | Flange | Flange |
| Material - Insulation | Polyphenylene Oxide (PPO) | Polyphenylene Oxide (PPO) |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Panel, Chassis | Chassis, Panel, Through Hole, Panel, Chassis |
| Number of Circuits | 11 | 11 |
| Number of Rows | 2 | 2 |
| Number of Wire Entries [custom] | 22 | 22 |
| Operating Temperature | 110 °C | 110 °C |
| Pitch [x] | 9.53 mm | 9.53 mm |
| Pitch [x] | 0.375 in | 0.375 in |
| Terminal Block Type | Barrier Block | Barrier Block |
| Terminal Screw Finish | Tin | Tin |
| Terminal Screw Material | - | Steel |
| Top Termination | Screws with Solder Lugs, Dual | Screws, Screws with Captive Plate, Screws with Solder Lugs, Dual |
| Wire Gauge [Max] | 22 AWG | 22 AWG |
| Wire Gauge [Min] | 10 AWG | 10 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 200 | $ 7.98 | |
1511 Series
CONN BARRIER STRP 11CIRC 0.375"
| Part | Barrier Type | Material Flammability Rating | Mounting Type | Current Rating (Amps) | Bottom Termination | Number of Wire Entries [custom] | Features | Terminal Block Type | Pitch [x] | Pitch [x] | Wire Gauge [Max] | Wire Gauge [Min] | Material - Insulation | Operating Temperature | Number of Rows | Top Termination | Number of Circuits | Terminal Screw Material | Terminal Screw Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Curtis Industries 1511-YWY | 2 Wall (Dual) | UL94 V-0 | Chassis, Panel, Through Hole | 20 A | Wire Wrap | 22 | Flange | Barrier Block | 9.53 mm | 0.375 in | 22 AWG | 10 AWG | Polyphenylene Oxide (PPO) | 110 °C | 2 | Screws | 11 | Steel | |
Curtis Industries 1511W | 2 Wall (Dual) | UL94 V-0 | Chassis, Panel | 20 A | Closed | 22 | Flange | Barrier Block | 9.53 mm | 0.375 in | 22 AWG | 10 AWG | Polyphenylene Oxide (PPO) | 110 °C | 2 | Screws with Captive Plate | 11 | Steel | |
Curtis Industries 1511-ST | 2 Wall (Dual) | UL94 V-0 | Chassis, Panel | 20 A | Closed | 22 | Flange | Barrier Block | 9.53 mm | 0.375 in | 22 AWG | 10 AWG | Polyphenylene Oxide (PPO) | 110 °C | 2 | Screws with Solder Lugs, Dual | 11 | Tin |
Description
General part information
1511 Series
11 Circuit 0.375" (9.53mm) Barrier Block Connector Screws with Solder Lugs, Dual
Documents
Technical documentation and resources
