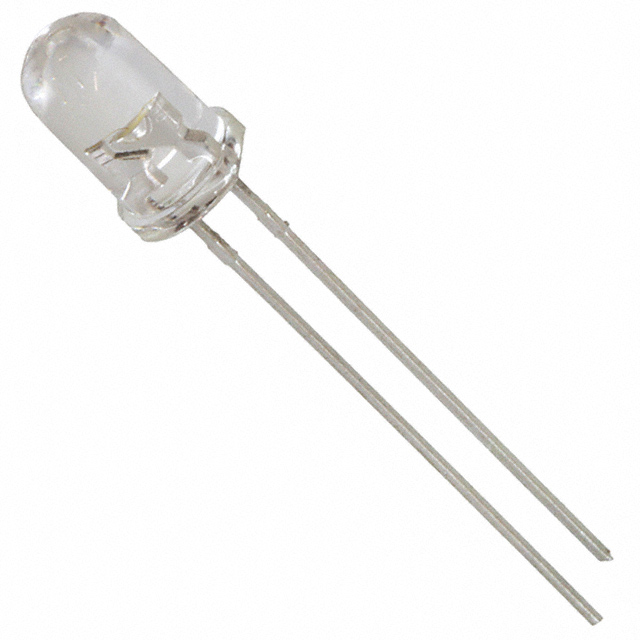

C503B-WAN-CBBDB232

Active

Cree LED

LED COOL WHITE CLEAR 5MM T/H

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

C503B-WAN-CBBDB232

Active

Cree LED

LED COOL WHITE CLEAR 5MM T/H

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	C503B-WAN-CBBDB232	C503B Series

Color	Cool, White	Red, Blue, Green, Amber, Cool, White
Configuration	Standard	Standard
Current - Test	20 mA	20 mA
Height (Max)	-	8.6 - 13.3 mm
Height (Max) [Max]	10.3 mm	10.3 - 12.7 mm
Lens Color	Colorless	Colorless
Lens Size	T-1 3/4	T-1 3/4
Lens Size	5 mm	5 mm
Lens Size	-	5 mm Dia
Lens Style	Round with Domed Top	Round with Domed Top
Lens Transparency	Clear	Clear
Millicandela Rating	33125 mcd	2850 - 34800 mcd
Mounting Type	Through Hole	Through Hole
Package / Case	Radial	Radial
Supplier Device Package	5 mm	5 mm
Supplier Device Package	-	5 mm
Viewing Angle	15 °	15 - 30 °
Voltage - Forward (Vf) (Typ)	3.2 V	2.1 - 3.2 V
Wavelength - Dominant	-	470 - 624 nm
Wavelength - Dominant	-	527 nm
Wavelength - Dominant [custom]	9000 K	9000 K

C503B Series

LED RED CLEAR 5MM ROUND T/H

...

Part	Wavelength - Dominant	Color	Package / Case	Viewing Angle	Lens Color	Millicandela Rating	Lens Size [diameter]	Height (Max) [Max]	Mounting Type	Lens Style	Supplier Device Package [diameter]	Current - Test	Voltage - Forward (Vf) (Typ)	Configuration	Lens Transparency	Height (Max) [Max] [z]	Wavelength - Dominant [custom]	Wavelength - Dominant [custom]	Supplier Device Package	Lens Size	Lens Size
Cree LED C503B-RAN-CZ0A0AA1	624 nm	Red	Radial	15 °	Colorless	12500 mcd	5 mm Dia	10.3 mm	Through Hole	Round with Domed Top	5 mm	20 mA	2.1 V	Standard	Clear
Cree LED C503B-RBS-CY0Z0AA1	624 nm	Red	Radial	23 °	Colorless	8930 mcd	5 mm Dia		Through Hole	Round with Domed Top	5 mm	20 mA	2.1 V	Standard	Clear	13.3 mm
Cree LED C503B-BCN-CX0Y0451	470 nm	Blue	Radial	30 °	Colorless	6190 mcd	5 mm Dia		Through Hole	Round with Domed Top	5 mm	20 mA	3.2 V	Standard	Clear	8.6 mm
Cree LED C503B-GCN-CA0B0782		Green	Radial	30 °	Colorless	17750 mcd	5 mm Dia	10.3 mm	Through Hole	Round with Domed Top	5 mm	20 mA	3.2 V	Standard	Clear		527 nm
Cree LED C503B-GCN-CY0Z0781	525 nm	Green	Radial	30 °	Colorless	8930 mcd	5 mm Dia	10.3 mm	Through Hole	Round with Domed Top	5 mm	20 mA	3.2 V	Standard	Clear
Cree LED C503B-BAN-CY0C0461	470 nm	Blue	Radial	15 °	Colorless	19380 mcd	5 mm Dia	10.3 mm	Through Hole	Round with Domed Top	5 mm	20 mA	3.2 V	Standard	Clear
Cree LED C503B-AAS-CA0B0341	591 nm	Amber	Radial	15 °	Colorless	13000 mcd	5 mm Dia		Through Hole	Round with Domed Top	5 mm	20 mA	2.1 V	Standard	Clear	13.2 mm
Cree LED C503B-GCS-CY0B0792-030		Green	Radial	30 °	Colorless		5 mm Dia	12.7 mm	Through Hole	Round with Domed Top	5 mm	20 mA	3.2 V	Standard	Clear		527 nm
Cree LED C503B-GCS-CY0C0791		Green	Radial	30 °	Colorless	19380 mcd	5 mm Dia	12.7 mm	Through Hole	Round with Domed Top	5 mm	20 mA	3.2 V	Standard	Clear		527 nm
Cree LED C503B-WAN-CCADB152		Cool, White	Radial	15 °	Colorless	34800 mcd		10.3 mm	Through Hole	Round with Domed Top		20 mA	3.2 V	Standard	Clear			9000 K	5 mm	T-1 3/4	5 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Box (TB)	2500	$ 0.21

Description

General part information

C503B Series

White, Cool 9000K LED Indication - Discrete 3.2V Radial
