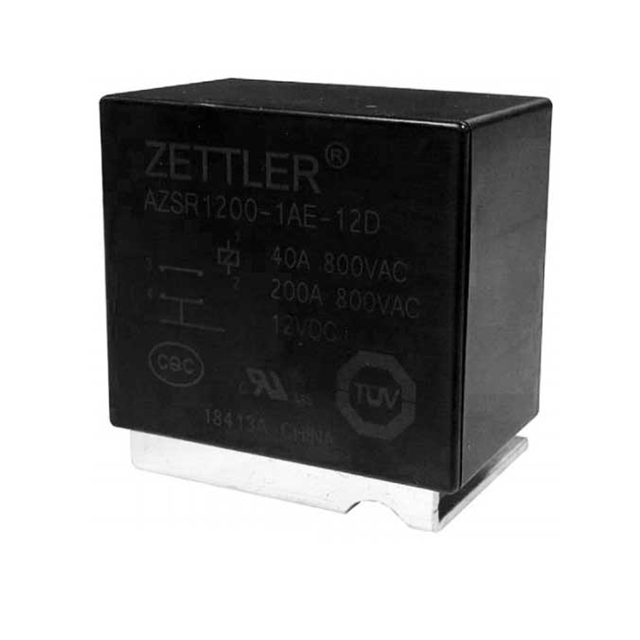

AZSR1200-1AE-24D

Active

American Zettler

RELAY EV CHG SOLAR SPST 200A 24V

Search across all available documentation for this part.

Active

American Zettler

RELAY EV CHG SOLAR SPST 200A 24V

Technical Specifications

Parameters and characteristics commom to parts in this series

RELAY EV CHG SOLAR SPST 200A 12V

Part	Coil Resistance	Contact Material	Approval Agency	Coil Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Relay Type	Coil Insulation	Coil Current	Operate Time	Termination Style	Load - Max Switching [Max]	Switching Voltage	Must Release Voltage	Contact Form	Contact Rating (Current)	Release Time	Must Operate Voltage	Mounting Type	Coil Type
American Zettler AZSR1200-1AE-12D	48 Ohms	Silver Tin Oxide (AgSnO)	TUV, UL	12 VDC	85 °C	-40 °C	EV Charging, Solar	Class F	250 mA	40 ms	PC Pin	110400 VA	920 VAC	0.6 VDC	SPST-NO (1 Form A)	200 A	15 ms	9 VDC	Through Hole	Non Latching
American Zettler AZSR1200-1AE-24D	192 Ohms	Silver Tin Oxide (AgSnO)	TUV, UL	24 VDC	85 °C	-40 °C	EV Charging, Solar	Class F	125 mA	40 ms	PC Pin	110400 VA	920 VAC	1.2 VDC	SPST-NO (1 Form A)	200 A	15 ms	18 VDC	Through Hole	Non Latching

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

EV Charging, Solar Relay SPST-NO (1 Form A) 24VDC Coil Through Hole
