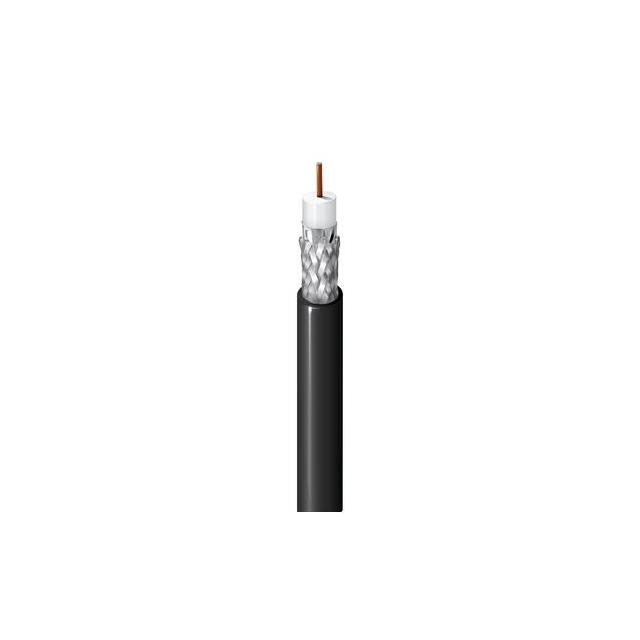

7810A 0101000

Active

Belden Inc.

RF400 WIRELESS 50 OHM COAX PO

Search across all available documentation for this part.

Active

Belden Inc.

RF400 WIRELESS 50 OHM COAX PO

Technical Specifications

Parameters and characteristics for this part

Specification	7810A 0101000

Cable Group	RG-8
Cable Type	Coaxial
Conductor Material	Aluminum, Copper Coated
Conductor Strand	Solid
Dielectric Diameter [diameter]	7.24 mm
Dielectric Diameter [diameter]	0.285 in
Features	UV Resistant
Jacket (Insulation) Diameter [diameter]	10.24 mm
Jacket (Insulation) Diameter [diameter]	0.403 in
Jacket (Insulation) Material	Polyethylene (PE)
Jacket Color	Black
Length	304.8 m
Length	1000 ft
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-40 °C
Shield Coverage	95 %, 100 %
Shield Material	Aluminum, Polyester, Copper, Tinned
Shield Type	Foil, Braid
Usage	RF Signal
VoP, Velocity of Propagation	86
Wire Gauge	10 AWG

Part	VoP, Velocity of Propagation	Conductor Strand	Jacket Color	Features	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Material	Shield Type	Conductor Material	Cable Group	Usage	Operating Temperature [Min]	Operating Temperature [Max]	Cable Type	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	Shield Coverage	Length	Length	Shield Material	Wire Gauge
Belden Inc. 7810A 0101000	86	Solid	Black	UV Resistant	10.24 mm	0.403 in	Polyethylene (PE)	Braid Foil	Aluminum Copper Coated	RG-8	RF Signal	-40 °C	80 C	Coaxial	7.24 mm	0.285 in	95 % 100 %	304.8 m	1000 ft	Aluminum Polyester Copper Tinned	10 AWG

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 2.99

General part information

Coaxial Cable 10 AWG RG-8 1000.0' (304.80m)
