829558-4

Active

TE Connectivity AMP Connectors

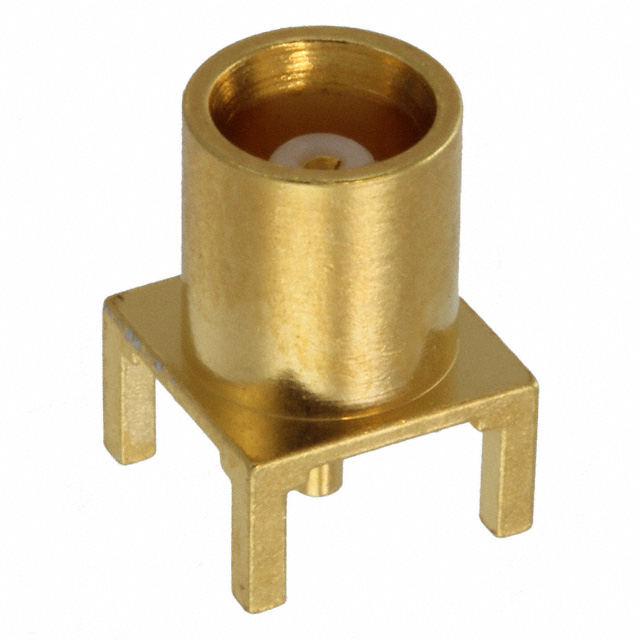

CONN MCX JACK STR 50 OHM PCB

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN MCX JACK STR 50 OHM PCB

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	829558-4	829558 Series

Body Finish	Gold	Gold
Body Material	Copper Alloy	Copper Alloy
Center Contact Material	Beryllium Copper	Beryllium Copper
Center Contact Plating	Gold	Gold
Connector Style	MCX	MCX
Connector Type	Female Socket, Jack	Female Socket, Jack
Contact Termination	Solder	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On	Snap-On
Frequency - Max [Max]	6000 MHz	6000 MHz
Housing Color	Gold	Gold
Impedance	50 Ohms	50 Ohms
Insertion Loss	0.1 dB	0.1 dB
Mating Cycles	500	500
Mounting Type	Through Hole	Through Hole
Number of Ports	1	1
Operating Temperature [Max]	165 °C	165 °C
Operating Temperature [Min]	-65 ░C	-65 ░C
Shield Termination	Solder	Solder
Voltage Rating	335 V	335 V

CONN MCX JACK STR 50 OHM PCB

Part	Operating Temperature [Min]	Operating Temperature [Max]	Body Finish	Number of Ports	Connector Type	Insertion Loss	Center Contact Plating	Mating Cycles	Shield Termination	Body Material	Contact Termination	Fastening Type	Housing Color	Frequency - Max [Max]	Connector Style	Voltage Rating	Dielectric Material	Mounting Type	Center Contact Material	Impedance
TE Connectivity AMP Connectors 829558-3	-65 ░C	165 °C	Gold	1	Female Socket, Jack	0.1 dB	Gold	500	Solder	Copper Alloy	Solder	Snap-On	Gold	6000 MHz	MCX	335 V	Polytetrafluoroethylene (PTFE)	Through Hole	Beryllium Copper	50 Ohms
TE Connectivity AMP Connectors 829558-4	-65 ░C	165 °C	Gold	1	Female Socket, Jack	0.1 dB	Gold	500	Solder	Copper Alloy	Solder	Snap-On	Gold	6000 MHz	MCX	335 V	Polytetrafluoroethylene (PTFE)	Through Hole	Beryllium Copper	50 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

MCX Connector Jack, Female Socket 50 Ohms Through Hole Solder
