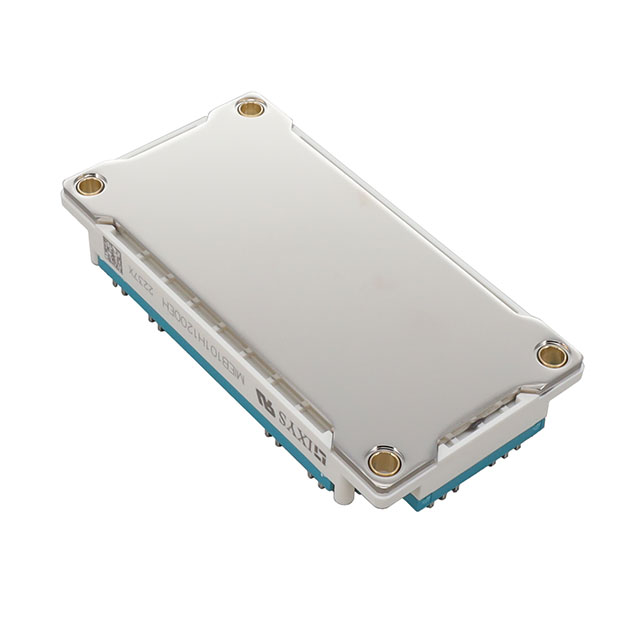

MIEB101H1200EH

IXYS

IGBT MODULE 1200V 183A 630W E3

Search across all available documentation for this part.

IXYS

IGBT MODULE 1200V 183A 630W E3

Technical Specifications

Parameters and characteristics for this part

Specification	MIEB101H1200EH

Configuration	Full Bridge Inverter
Current - Collector (Ic) (Max) [Max]	183 A
Current - Collector Cutoff (Max) [Max]	300 µA
Input	Standard
Input Capacitance (Cies) @ Vce	7.43 nF
Mounting Type	Chassis Mount
NTC Thermistor	False
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-40 °C
Package / Case	E3
Power - Max [Max]	630 W
Supplier Device Package	E3
Vce(on) (Max) @ Vge, Ic	2.2 V
Voltage - Collector Emitter Breakdown (Max) [Max]	1200 V

Part	Vce(on) (Max) @ Vge, Ic	Current - Collector (Ic) (Max) [Max]	Input	NTC Thermistor	Supplier Device Package	Configuration	Operating Temperature [Min]	Operating Temperature [Max]	Input Capacitance (Cies) @ Vce	Voltage - Collector Emitter Breakdown (Max) [Max]	Package / Case	Mounting Type	Current - Collector Cutoff (Max) [Max]	Power - Max [Max]
IXYS MIEB101W1200EH	2.2 V	183 A	Standard		E3	Three Phase Inverter	-40 °C	125 ¯C	7.43 nF	1200 V	E3	Chassis Mount	300 µA	630 W
IXYS MIEB101H1200EH	2.2 V	183 A	Standard		E3	Full Bridge Inverter	-40 °C	125 ¯C	7.43 nF	1200 V	E3	Chassis Mount	300 µA	630 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

IGBT Module Full Bridge Inverter 1200 V 183 A 630 W Chassis Mount E3
