796635-2

Active

TE Connectivity AMP Connectors

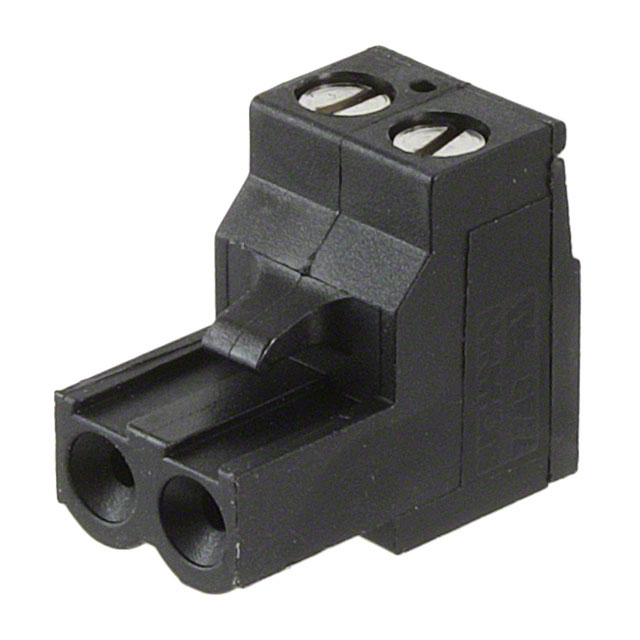

TERM BLOCK PLUG 2POS STR 5.08MM

Deep-Dive with AI

Search across all available documentation for this part.

796635-2

Active

TE Connectivity AMP Connectors

TERM BLOCK PLUG 2POS STR 5.08MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.30
		10	$ 1.22
		300	$ 1.01
		1200	$ 0.83
		5100	$ 0.75
		10200	$ 0.70

Description

General part information

796635 Series

2 Position Terminal Block Plug, Female Sockets 0.200" (5.08mm) 180° Free Hanging (In-Line)

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	796635-2	796635 Series

Color	Black	Black
Contact Material	Phosphor Bronze	Phosphor Bronze
Contact Mating Finish	Tin	Tin
Features	-	Positions Stamped, Retention Latches (Non-Wire Side)
Insulation Height	0.61 in	0.61 in
Insulation Height	15.49 mm	15.49 mm
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Levels	1	1
Number of Positions	2	2 - 22
Number of Positions	-	16
Operating Temperature [Max]	110 °C	110 °C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch [x]	0.2 in	0.2 in
Pitch [x]	5.08 mm	5.08 mm
Positions Per Level	2	2 - 22
Screw Size	M3	M3
Termination Style	Screw - Rising Cage Clamp	Screw - Rising Cage Clamp
Torque - Screw	0.79 Nm	0.79 Nm
Torque - Screw	7 Lb-In	7 Lb-In
Type	Plug, Female Sockets	Plug, Female Sockets
Voltage - UL	300 V	300 V
Wire Gauge or Range - AWG [Max]	30 AWG	30 AWG
Wire Gauge or Range - AWG [Min]	12 AWG	12 AWG
Wire Gauge or Range - mm˛	-	3 mm˛
Wire Gauge or Range - mm˛	-	0.05 mm˛
Wire Gauge or Range - mm² [Max]	3 mm²	3 mm²
Wire Gauge or Range - mm² [Min]	0.05 mm²	0.05 mm²
Wire Strip Length [Max]	7.5 mm	7.5 mm
Wire Strip Length [Min]	6 mm	6 mm

796635 Series

TERM BLOCK PLUG 7POS STR 5.08MM

Part	Positions Per Level	Material Flammability Rating	Termination Style	Voltage - UL	Number of Positions	Wire Strip Length [Max]	Wire Strip Length [Min]	Type	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height	Insulation Height	Screw Size	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Number of Levels	Color	Torque - Screw	Torque - Screw	Pitch [x]	Pitch [x]	Contact Mating Finish	Contact Material	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Mounting Type	Features	Wire Gauge or Range - mm˛ [Max]	Wire Gauge or Range - mm˛ [Min]	Number of Positions
TE Connectivity AMP Connectors 796635-7	7	UL94 V-0	Screw - Rising Cage Clamp	300 V	7	7.5 mm	6 mm	Plug, Female Sockets	-40 °C	110 °C	0.61 in	15.49 mm	M3	0.05 mm²	3 mm²	1	Black	0.79 Nm	7 Lb-In	0.2 in	5.08 mm	Tin	Phosphor Bronze	30 AWG	12 AWG	Free Hanging (In-Line)
TE Connectivity AMP Connectors 2-796635-1	21	UL94 V-0	Screw - Rising Cage Clamp	300 V	21	7.5 mm	6 mm	Plug, Female Sockets	-40 °C	110 °C	0.61 in	15.49 mm	M3	0.05 mm²	3 mm²	1	Black	0.79 Nm	7 Lb-In	0.2 in	5.08 mm	Tin	Phosphor Bronze	30 AWG	12 AWG	Free Hanging (In-Line)
TE Connectivity AMP Connectors 4-796635-1	13	UL94 V-0	Screw - Rising Cage Clamp	300 V	13	7.5 mm	6 mm	Plug, Female Sockets	-40 °C	110 °C	0.61 in	15.49 mm	M3	0.05 mm²	3 mm²	1	Black	0.79 Nm	7 Lb-In	0.2 in	5.08 mm	Tin	Phosphor Bronze	30 AWG	12 AWG	Free Hanging (In-Line)	Positions Stamped, Retention Latches (Non-Wire Side)
TE Connectivity AMP Connectors 2-796635-2	22	UL94 V-0	Screw - Rising Cage Clamp	300 V	22 positions	7.5 mm	6 mm	Plug, Female Sockets	-40 °C	110 °C	0.61 in	15.49 mm	M3			1	Black	0.79 Nm	7 Lb-In	0.2 in	5.08 mm	Tin	Phosphor Bronze	30 AWG	12 AWG	Free Hanging (In-Line)		3 mm˛	0.05 mm˛
TE Connectivity AMP Connectors 796635-2	2	UL94 V-0	Screw - Rising Cage Clamp	300 V	2	7.5 mm	6 mm	Plug, Female Sockets	-40 °C	110 °C	0.61 in	15.49 mm	M3	0.05 mm²	3 mm²	1	Black	0.79 Nm	7 Lb-In	0.2 in	5.08 mm	Tin	Phosphor Bronze	30 AWG	12 AWG	Free Hanging (In-Line)
TE Connectivity AMP Connectors 1-796635-3	13	UL94 V-0	Screw - Rising Cage Clamp	300 V	13	7.5 mm	6 mm	Plug, Female Sockets	-40 °C	110 °C	0.61 in	15.49 mm	M3	0.05 mm²	3 mm²	1	Black	0.79 Nm	7 Lb-In	0.2 in	5.08 mm	Tin	Phosphor Bronze	30 AWG	12 AWG	Free Hanging (In-Line)
TE Connectivity AMP Connectors 1-796635-1	11	UL94 V-0	Screw - Rising Cage Clamp	300 V	11	7.5 mm	6 mm	Plug, Female Sockets	-40 °C	110 °C	0.61 in	15.49 mm	M3	0.05 mm²	3 mm²	1	Black	0.79 Nm	7 Lb-In	0.2 in	5.08 mm	Tin	Phosphor Bronze	30 AWG	12 AWG	Free Hanging (In-Line)
TE Connectivity AMP Connectors 1-796635-0	10	UL94 V-0	Screw - Rising Cage Clamp	300 V	10	7.5 mm	6 mm	Plug, Female Sockets	-40 °C	110 °C	0.61 in	15.49 mm	M3			1	Black	0.79 Nm	7 Lb-In	0.2 in	5.08 mm	Tin	Phosphor Bronze	30 AWG	12 AWG	Free Hanging (In-Line)		3 mm˛	0.05 mm˛
TE Connectivity AMP Connectors 1-796635-6	16	UL94 V-0	Screw - Rising Cage Clamp	300 V		7.5 mm	6 mm	Plug, Female Sockets	-40 °C	110 °C	0.61 in	15.49 mm	M3	0.05 mm²	3 mm²	1	Black	0.79 Nm	7 Lb-In	0.2 in	5.08 mm	Tin	Phosphor Bronze	30 AWG	12 AWG	Free Hanging (In-Line)				16
TE Connectivity AMP Connectors 796635-5	5	UL94 V-0	Screw - Rising Cage Clamp	300 V		7.5 mm	6 mm	Plug, Female Sockets	-40 °C	110 °C	0.61 in	15.49 mm	M3			1	Black	0.79 Nm	7 Lb-In	0.2 in	5.08 mm	Tin	Phosphor Bronze	30 AWG	12 AWG	Free Hanging (In-Line)		3 mm˛	0.05 mm˛
